Data Box From Yoshimura - Can Am Commander

An awsome addative to our Exhaust and PIM2 system. Let us take all the work out of haveing performance. By far the best system on the market the DATA Box is Dragonfires first choice for Can Am performance. Read below to hear what Yoshimura has to say about this remarkable product.

FEATURES:
Reads Air Fuel
Works with PIM2 Self Mapping Feature
Dyno or on track Self mappingComputes fuel map for air fuel ratio settings from 11.0 to 15.0
Choose from Stainless or Titanium bung and plug (Bung material MUST match your exhaust system material)
Sets fuel adjustments at each Throttle position and RPM Range
Plug and Play installation with the PIM2 unit (may require pipe modification to accept sensor)
Allows for quick and easy dyno tuning
User adjustable target air fuel ratio for performance and fuel economy

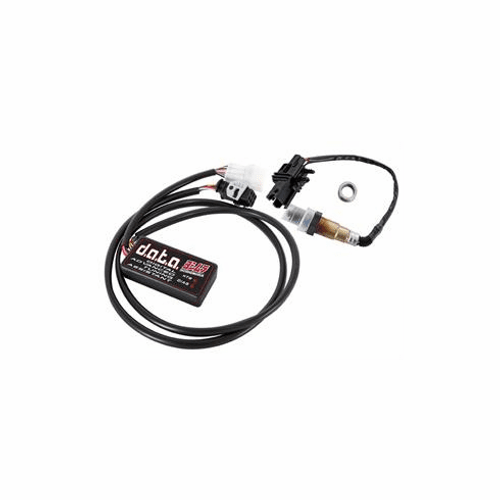

The optional DATA kit consists of an air fuel sensor and amplifier box that plugs into the PIM2, and allows for self-mapping of the motorcycle. Self-mapping means that as the user rides the bike on a dyno or on a closed course, the DATA Box automatically calculates the required fuel adjustment at each RPM and Throttle Position to reach the user selectable target air fuel ratio.

The DATA Box offers an alternative way for mapping without the time or cost of a custom dyno tune. For the rider looking for maximum performance, a dyno tune together with the DATA is the way to go.

The DATA Box Mapping software allows for the user to easily enter the target air fuel ratio, start, stop, and review the results of the self-mapping function. Once the recommended adjustments have been reviewed, the user can either apply all of the suggested adjustments or just a certain range with a few simple clicks of the mouse.

The kit comes with all of the required hardware, but may require modification of the exhaust pipe to accept the air fuel sensor fitting.


Usually ships in 3-4 business days
