High Lifter Kawasaki Teryx KRX 1000 APEXX Front Forward Control Arms

Fits:
2024 Kawasaki Teryx KRX 4 1000 eS Special Edition (SE)
2024 Kawasaki Teryx KRX 4 1000 Special Edition (SE)
2023 Kawasaki Teryx KRX 1000
2023 Kawasaki Teryx KRX 1000 eS
2023 Kawasaki Teryx KRX 1000 Special Edition (SE)
2023 Kawasaki Teryx KRX 1000 Trail Edition
2023 Kawasaki Teryx KRX 4 1000 eS
2023 Kawasaki Teryx KRX 4 1000 eS Special Edition (SE)
2023 Kawasaki Teryx KRX 4 1000 Special Edition (SE)
2022 Kawasaki Teryx KRX 1000
2022 Kawasaki Teryx KRX 1000 Special Edition (SE)
2022 Kawasaki Teryx KRX 1000 Trail Edition
2021 Kawasaki Teryx KRX 1000
2021 Kawasaki Teryx KRX 1000 Special Edition (SE)
2021 Kawasaki Teryx KRX 1000 Trail Edition
2020 Kawasaki Teryx KRX 1000

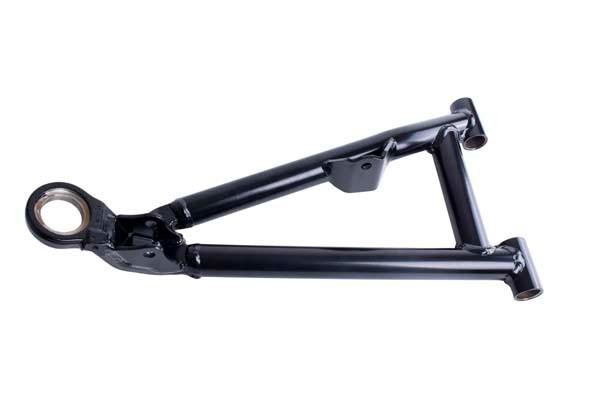

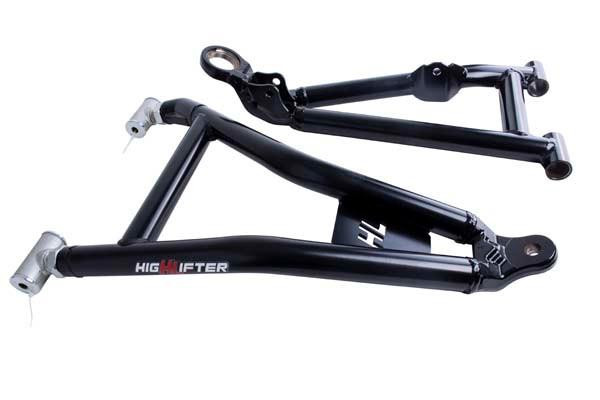

High Lifter's heavy-duty control arms offer increased strength and durability over factory parts.
Made from 1.5" DOM with .120 wall tubing, these arms are 50% larger and 70% thicker for added toughness.
The lower arms feature adjustable bushing collars to prevent premature wear from lift kits, portals, or larger tires, with 3/8" of camber adjustability. The kit comes pre-adjusted to the factory position, and uses factory bushings and caps for installation.
For improved ground clearance, the lower control arms are designed with double bends, providing an extra 1.75" of clearance while maintaining factory geometry to reduce wear on axles and tie rods. The upper control arm has a repositioned sway bar tab to reduce wear on sway bar links.
Additionally, reinforced ball joint brackets increase the mounting area by over 130% to prevent failure from torque caused by portals or large tires.
Features:

Adjustable heat-treated collars for camber adjustability with a 1" thread

Raked forward 2"

Over 3 degrees of camber adjustment in each direction

Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible

Ladder bar compatible with the 1.5" ID clamps

Extreme duty 1.5" x .120" DOM steel construction

Up to 2" of added ground clearance compared to OEM lower arm

Mounting accommodations for OEM brake lines using OEM tabs instead of P-clamps

Optimized sway bar linkage angles

Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)

Powder Coated
If you are curious about how to install this product, you can view the Install Instructions here.
.
