KFI | John Deere Gator | Open Trail UTV Plow System
Item# kfi-snwplwgator
Description

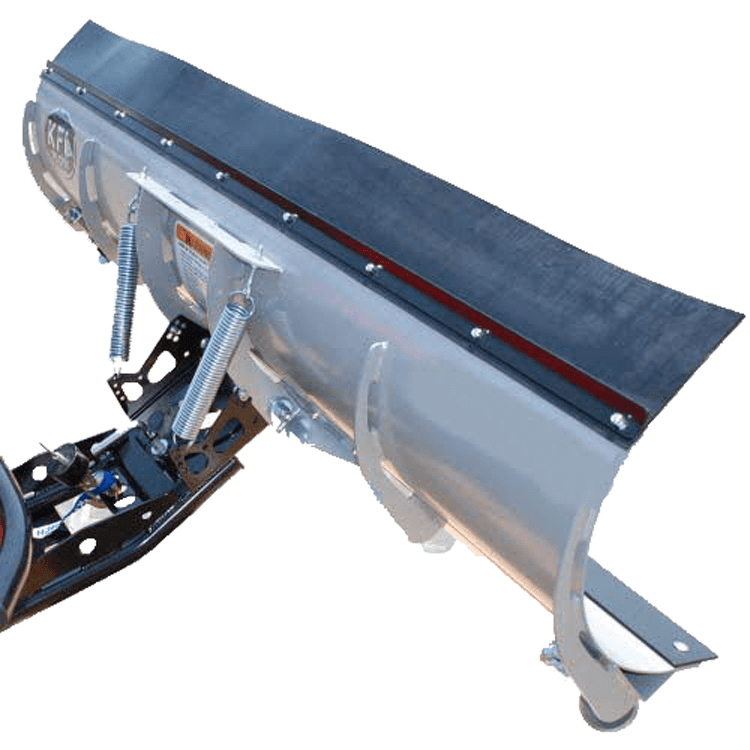

A John Deere Gator and KFI Open Trail Plow System make a good pair. John Deere is a name synonymous with hard work and the KFI Plow System is a perfect compliment to that legacy. KFI Open Trail Plow System are all made in the USA and are some of the most rugged components you can put on your machine.
Plow Kit come complete with:
(1) Plow Blade (your choice of size)

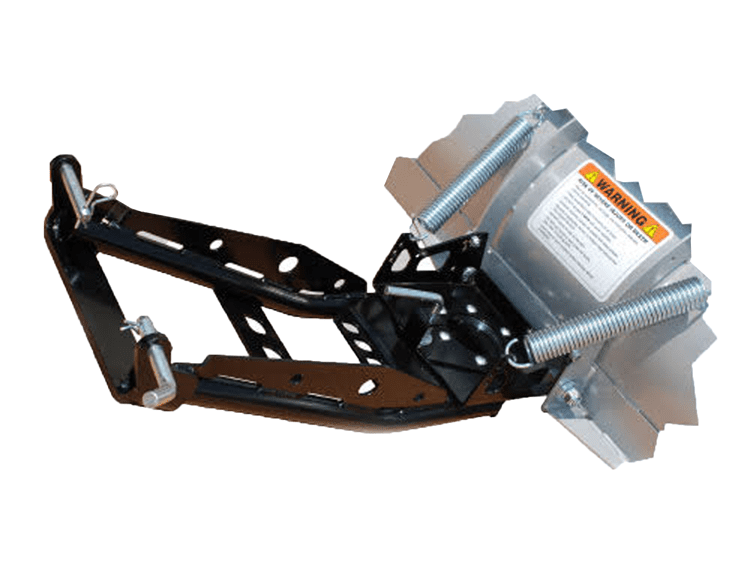

(1) UTV Push Tube

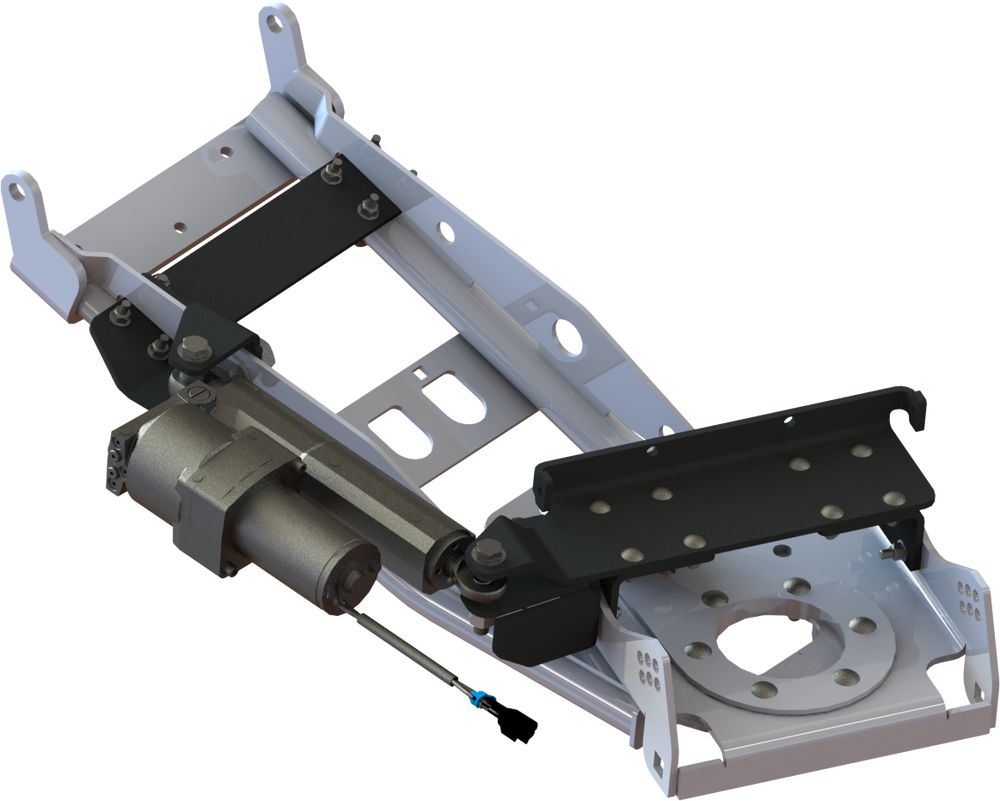

(1) Vehicle Specific Mount (make sure to select your correct vehicle above)
- Does not included winch or winch mount
- 60" blades do not include 2-ply top rubber flap, must be purchased separately
All Plow Components Feature:
- Complete installation instructions included
- All mounting hardware included
- KFI satisfaction guaranteed
- 2-Year KFI Warranty
- Powdercoated for maximum durability
- Components are metal bead blasted before they are powder coated for the best possible finish prep.
- 100% Made in the USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gusseting for the wider width and heavier UTV
- Includes a 7" high 2-ply top rubber flap

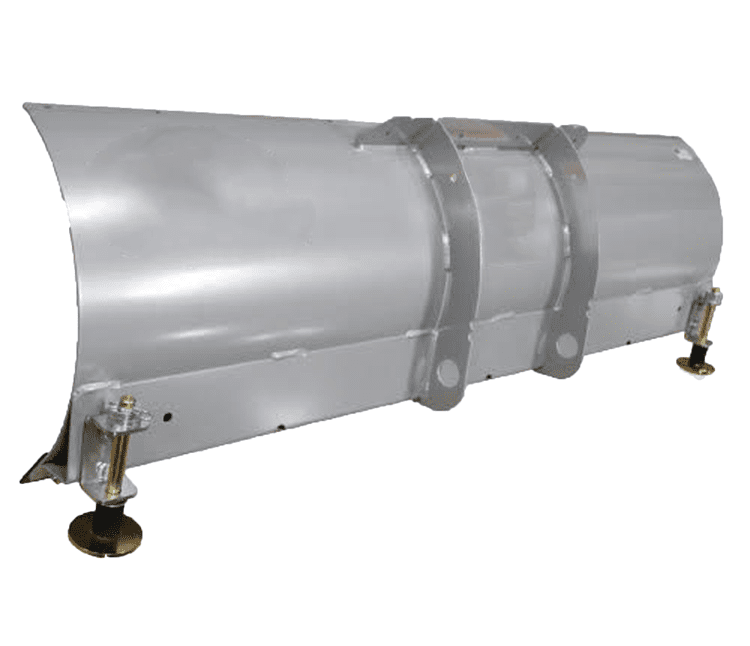

- Measures 16" Tall and 60", 66" or 72" Wide
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 3/16” Grade 50 Steel Rib and Frame construction
- Shot Blasted and Powder Coated Black Steel Frame

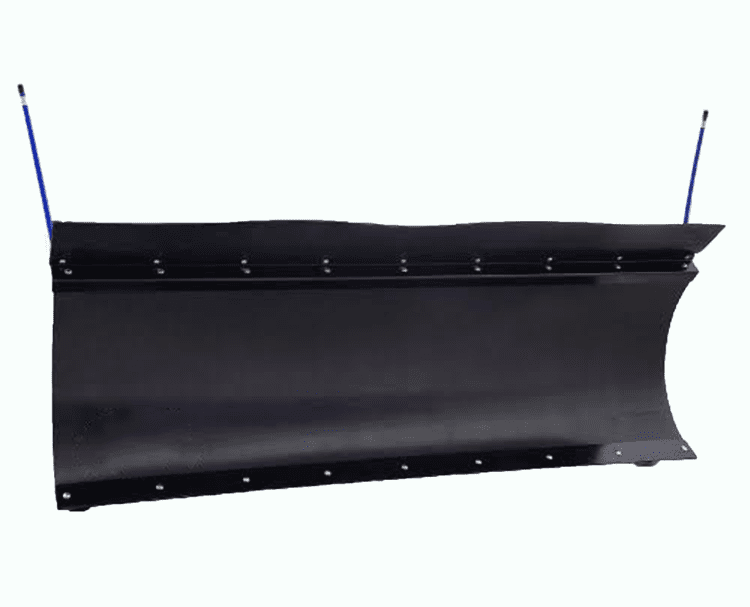

- Flexible Heavy Duty Black Poly face
- Same weight as steel blades
- 2-Sided 3/16” Grade 50 Steel attached with Grade 8 bolts
- Includes Plow Markers
- Replaceable Blade Face
- 66” and 72” Options
- Includes snow flap
- Dual Curvature face for supreme snow moving
- 21” Vertical blade face height with an approximate 27” height with snow flap
- Works with current KFI No.105635 UTV Tube System
- Heavy Duty 1/2” thick Adjustable Skids
- Front Mount Design with 30" of lift height
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
