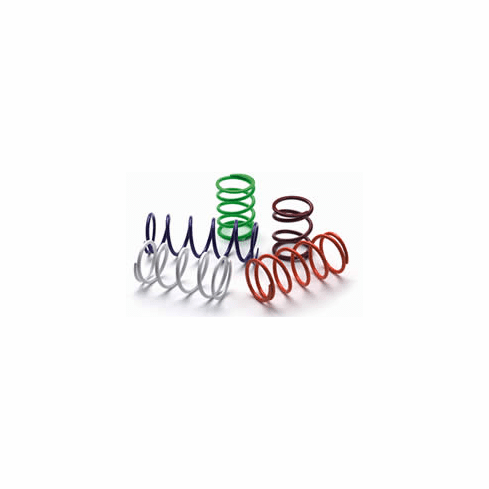

Primary Clutch Springs

COLOR---PART#---2-1/2" Load-----2-1/4" Load----1-1/4" Load
Purple-----PATV4-----120 lbs---------132 lbs--------182 lbs
Yellow----PATV3------95 lbs---------105 lbs--------145 lbs
White-----PATV6------75 lbs----------91 lbs--------155 lbs
Orange----PATV2------75 lbs----------87 lbs--------140 lbs
Red-------PATV1------35 lbs----------54 lbs-------140 lbs
Gold------PATV9------25 lbs----------47 lbs--------135 lbs
Almond----PATV12-----19 lbs----------47 lbs--------160 lbs
Green-----PATV7------17 lbs----------38 lbs--------123 lbs
Maroon----PATV10------1 lbs----------35 lbs-------170 lbs
Pink------PATV8-------0 lbs----------24 lbs-------160 lbs
Blue------PATV5*------0 lbs----------20 lbs-------115 lbs
* Replaces Polaris 7041157 Blue/Green
¢Fine tune your engagement and top RPM as you like.
¢Designed from the highest quality material.
¢All EPI springs manufactured using a 5% tolerance which is the lowest in the industry.
¢ISO 9000 certified.
¢Largest selection of springs to choose from.
