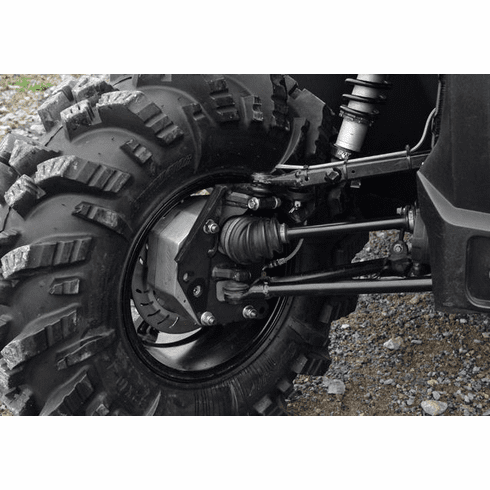

Arctic Cat Wildcat Trail / Sport 4" Portal Gear Lift By SuperAtv

Arctic Cat Wildcat Trail / Sport 4" Portal Gear Lift

Will fit:

Arctic Cat Trail : 2014+

Why We Make Them? Take back your torque with Gear Driven Performance by SuperATV. We all know monster tires rob your much-desired horsepower. To keep that ultimate performance and gain an extra 4” of coveted lift, you want GDP from SuperATV.

Why GDP? The GDP portal lift system spares no details as the most comprehensive kit on the market. SuperATV knows suspension and transferred over 10 years of suspension engineering into the GDP portal lifts. GDP starts by vertically relocating the axle centerline while retaining factory steering geometry – a must if you want to increase the life of your axles, differential, and drive train components. Pair that with a 1.4:1 gear reduction (approximately 30%), and you’ve got a performance driven machine!

Performance

Pair with SuperATV lift kits, a arms, and axles for extreme performance 30% gear reduction

Designed for all terrains and riding styles

Axles

You will not chop your axles. GDP is the only kit on the market compatible with aftermarket and OEM axles with no modifications

GDP maintains performance-ready axle angles

Impenetrable Bearings and Seals

First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads Automotive grade bearings Press fit, precision ground gears and shafts to eliminate unwanted slop

Precision-Ground Gears: drive gear, idler gear and driven gear Precision-ground chromium titanium alloy gears for industry best performance Eliminates friction for reduced heat, noise and allows you to run at higher speeds Reduced friction build-up Quiet gears at all speeds Performs at machine's fullest capacity

Steering Arm Heavy duty structural member 10.9 grade hardware Modular design for improved functionality

Aluminum Housing CNC machined aluminum housing Polished aluminum for long lasting, stylish finish

How About Adjustability? Pair with our adjustable a arms GDP understands the need for adjustability allowing you to custom tailor your machine to match your riding needs Eliminates unwanted, premature tire wear caused from misalignment Camber adjustability on all SuperATV a arms

Mounting Plates and Pivot Blocks CNC formed, fully gusseted 5/16” mounting plates Forged pivot blocks

Slotted Rotors for Unmatched Cooling Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110 Ability to utilize different wheels on same hub Stainless steel, braided brake lines included in each kit

Wheel Requirements

Requires a 14" or larger wheel

Wheels can not exceed 5" backspacing

Recessed Nut Kit required for most aftermarket axles. Not required when using Stock, Rhino Brand and ADR axles.

Suspension Setup Max Tire Size

Stock 32"

2-3" Lift Kit 36"

Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes will not rub. With minimal rubbing or trimming, larger sizes can be used.

Usually ships in 3-4 business days
