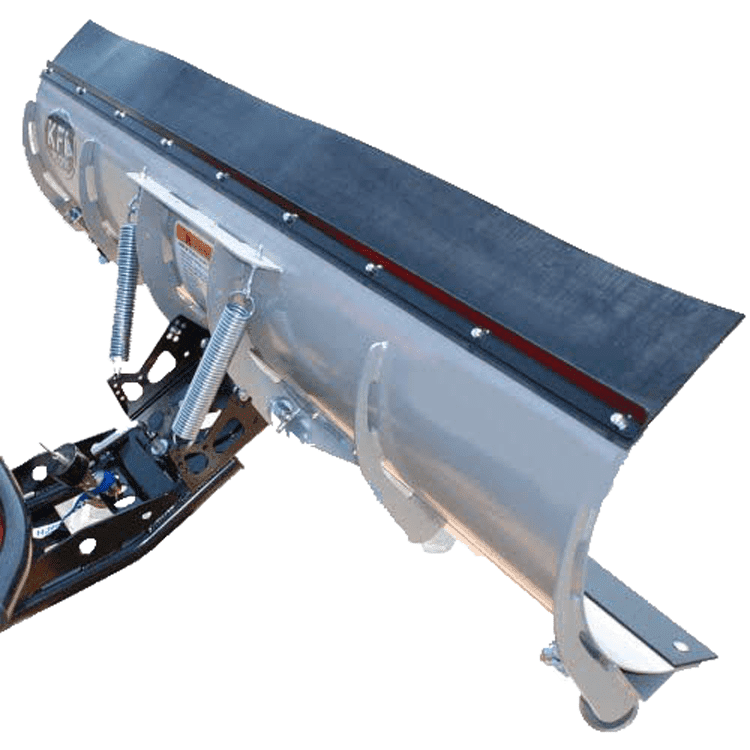

KFI | Bennche UTV's - Bighorn | Cowboy | T-Boss | Open Trail Plow System
Item# kfi-snwplw-bennche
Description
Bennche UTV's are synonymous with the snow and the good news is they make great snow-plowing vehicles for the Bighorn, Cowboy and T-Boss! Pair any one of the Bennche UTVs with a KFI Open Trail Plow Kit and you have yourself a driveway clearing stud. KFI Snow Plow Kits are a perfect way to utilize your UTV even when the winter months settle in.
Plow Kit come complete with:
(1) Plow Blade (your choice of size)
(1) UTV Push Tube
(1) Vehicle Specific Mount (make sure to select your correct vehicle above)
- Does not include winch or winch mount
- 60" blades do not include 2-ply top rubber flap, must be purchased separately
Note: For T-Bosses, it is recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045. Lift Lever is using SYNTHETIC cabled winches.
All Plow Components Feature:
- Complete installation instructions included
- All mounting hardware included
- KFI satisfaction guaranteed
- 2-Year KFI Warranty
- Powdercoated for maximum durability
- Components are metal bead blasted before they are powder coated for the best possible finish prep.
- 100% Made in the USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gusseting for the wider width and heavier UTV
- Includes a 7" high 2-ply top rubber flap
- Measures 16" Tall and 60", 66" or 72" Wide
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 3/16” Grade 50 Steel Rib and Frame construction
- Shot Blasted and Powder Coated Black Steel Frame
- Flexible Heavy Duty Black Poly face
- Same weight as steel blades
- 2-Sided 3/16” Grade 50 Steel attached with Grade 8 bolts
- Includes Plow Markers
- Replaceable Blade Face
- 66” and 72” Options
- Includes snow flap
- Dual Curvature face for supreme snow moving
- 21” Vertical blade face height with an approximate 27” height with snow flap
- Works with current KFI No.105635 UTV Tube System
- Heavy Duty 1/2” thick Adjustable Skids
- Front Mount Design with 30" of lift height
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
