72" Plow System for CF Moto ZForce 800
Item# DEN-3SBSS-77-10600
Description
NOTES:
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.
Applicability: Fits
Thanks to Side By Side Stuff and our online supply of aftermarket snowplow systems, you'll never have to dread the winter months again. Many perks come with purchasing one of these UTV attachments, from clearing off driveways and roads to moving dirt and such. The question is which CF Moto unit will do the deed the way you need it done? We say this ZForce 1000 72 Inch Pro Series Snow Plow System by Denali has the grit to get it done quickly and efficiently like no other.
Denali did the dang thang when they developed this SxS snowplow blade. The county-style curved blade is formed for heavy-duty steel, sand-blasted, and powder-coated with an epoxy, TGIC mixture. This thing is dripping with durability and life preservation attributes, right down to being corrosion and UV-resistant. It's also supported by even more rigidity. The stiffeners and a stabilizer bar are also formed of high-grade steel. Though being tough matters, if it can't perform, what's the point? Denali took a new approach to innovation with the inner workings of this ZForce 800 snowplow system. Between the adjustability and integrated turn system, pushing snow has never been so productive. Winter will be here before you know it. The time to order your new CF Moto plow kit is now.
Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
Optional Hydroturn Specifications:
Optional Push Tube Length:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.
Optional Plow Pulley Fairlead Kit:
The Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.
Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.
Applicability: Fits
- 2014-22 CFMOTO ZForce 800 and ZForce 800EX
- 2016-22 CFMOTO ZForce 500
- 2018-19 CFMOTO ZForce 1000
Thanks to Side By Side Stuff and our online supply of aftermarket snowplow systems, you'll never have to dread the winter months again. Many perks come with purchasing one of these UTV attachments, from clearing off driveways and roads to moving dirt and such. The question is which CF Moto unit will do the deed the way you need it done? We say this ZForce 1000 72 Inch Pro Series Snow Plow System by Denali has the grit to get it done quickly and efficiently like no other.
Denali did the dang thang when they developed this SxS snowplow blade. The county-style curved blade is formed for heavy-duty steel, sand-blasted, and powder-coated with an epoxy, TGIC mixture. This thing is dripping with durability and life preservation attributes, right down to being corrosion and UV-resistant. It's also supported by even more rigidity. The stiffeners and a stabilizer bar are also formed of high-grade steel. Though being tough matters, if it can't perform, what's the point? Denali took a new approach to innovation with the inner workings of this ZForce 800 snowplow system. Between the adjustability and integrated turn system, pushing snow has never been so productive. Winter will be here before you know it. The time to order your new CF Moto plow kit is now.
Blade Specifications:
- U.S.A. made
- County-style blade with curved design made of 12 gauge steel
- Impact resistant reinforcement system disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- Includes edge stiffeners and stabilizer bar
- Sand blasted, powder coated with epoxy primer and TGIC polyester top coat for corrosion protection, UV resistance and durability

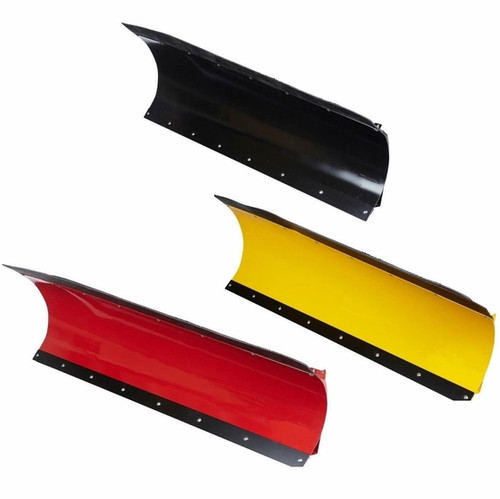

- Available in black, red or yellow
- High strength, high yield 3/16 inch thick grade 50 steel wear bar
- Angle blade is 23 inches on the tallest side and 16 inches on the shortest side
- Rubber flap stabilizer bar with upgraded (stiffer) rubber flap
- Plow markers included
- Height and angle adjustable premium steel skid feet
- Includes 3 year warranty on the plow blade against manufacturer defects
Push Tube Specifications:
- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
Plow Mount Specifications:
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground
Optional Hydroturn Specifications:
- Parker hydraulics system with built in relief valve overload protection
- Hydraulic system is completely sealed for life
- Full radius turn in just 5 seconds while driving
- Heavy duty chrome plated 3/4 inch cylinder shafts
- Two bolt installation of hydraulic cylinder and pump
- No modifications necessary
- Wire harness utilizes weatherproof connectors
- Backwards compatible with manual turning system
- Overload protection of 4,000 lbs. of extension force and 3,500 lbs. of retraction force
- Includes 3 year warranty
Optional Push Tube Length:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.
Optional Plow Pulley Fairlead Kit:
The Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.
- Standard spool pattern: 3" x 4-7/8"
- Wide spool pattern: 3" x 6.67"
Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
