EVO Powersports 2020 X3 Turbo RR X85 CodeShooter Power Flash Pack
Item# EVO-001FC0025
Description
EVO Powersports 2020 X3 Turbo RR X85 CodeShooter Power Flash Pack (002RC0024)
Podium proven time and time again, EVO relentlessly test and push limits to ensure the riders get the horsepower gains, power at the wheel and performance they need. EVO commitment has always been to deliver the most refined, powerful & relentlessly tested ECU Power Flash possible.
Every Flash is tailored for the specific components installed on your machine, so some Stages require additional hardware. Additional hardware will automatically be added to your order if required. If you already own additional hardware, you can delete those items prior to adding to your cart.
This Kit Includes

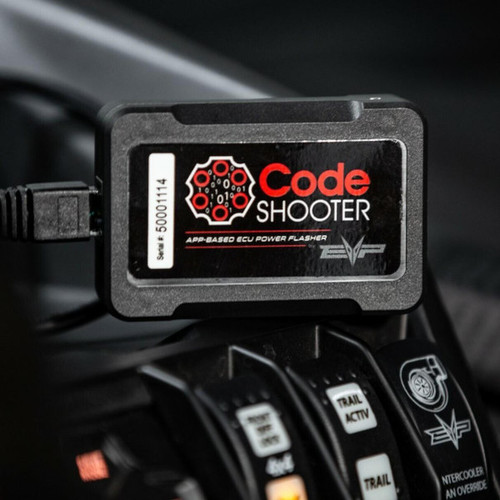

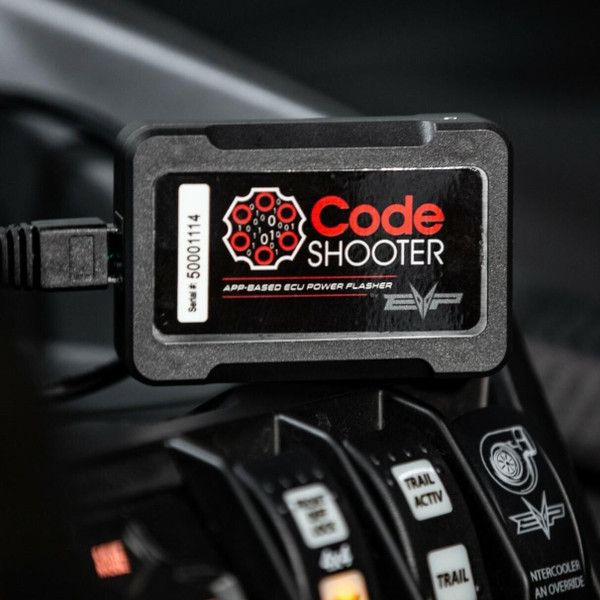

- CodeShooter ECU Flashing Device
- BIG INJECTOR: Stage 1 - 5 + Stage 5 X85
- X3 High Pressure Fuel Pump and Wiring Harness
- X3 RR Injectors - Set of 3
- X3 RR Injector Adapter Harness - Set of 3
Fitment
- 2020 Can-Am Maverick X3
ECU Power Flash Stages
| Stock Injector ECU Flashes | HP | Boost (lbs) | Wastegate Crack Pressure (lbs) | Fuel (Octane) | Recommended Exhaust |
|---|---|---|---|---|---|
| Stock | 195 | 18 | 9 | 91 | N/A |
| Stage 1 | 200 | 18.5 | 9 | 91 | Stock or Aftermarket |
| Stage 2R | 210 | 19.5 | 9 | 91 | Stock or Aftermarket |
| Stage 3R | 215 | 20 | 9 | 91 | Stock or Aftermarket |
| Stage 3R-93 | 225 | 21.5 | 9 | 93 | Stock or Aftermarket |
| Big Injector ECU Flashes | HP | Boost (lbs) | Wastegate Crack Pressure (lbs) | Fuel (Octane) | Recommended Exhaust |
|---|---|---|---|---|---|
| Stage 3BI | 210 | 18 | 12 | 91 | Stock or Aftermarket |
| Stage 4 X100 | 245 | 24 | 12 | 100 | Stock or Aftermarket |
| Stage 5 | 245 | 24 | 12 | E85 | Stock or Aftermarket |
| Stage 5 X85 | 255 | 27 | 12 | E85 | Stock or Aftermarket |
Suffix Identifiers:
- R: The Turbo Wastegate Crack Pressure Must Be Adjusted for Higher Boost
- W: A Replacement Wastegate Actuator Is Included with The Tune
- i: This Is a Big Injector Tune and Includes Flow Matched Injectors
- MM: This tune allows you to run both 91 & 95 Octane with the flip of a switch for those circumstances where you just can't get 95 Octane, you can still ride with 91 Octane with no other adjustments.
- X: EXTREME Power! The Maximum Performance that Can Be Achieved with the Stock Turbocharger
- For all Stage 4 Tunes and higher (22+ lbs of boost) EVO highly recommend Plenum Reinforcement Brace or Torrent-F Intake Plenum
