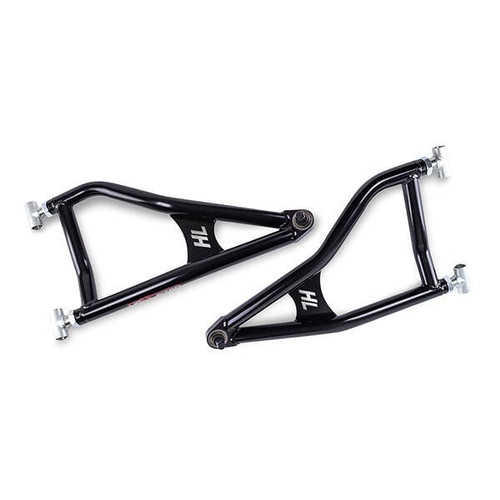

High Lifter Polaris RZR XP 1000 APEXX Control Arms (Front Forward Upper & Lower)

Name: High Lifter Polaris RZR XP 1000 APEXX Control Arms (Front Forward Upper & Lower)
Brand: High Lifter
Price: 749.95 USD
Availability: OutOfStock

Item# HIL-HDFFA-RZR1-1-B

Description

High Lifter Polaris RZR XP 1000 APEXX Control Arms (Front Forward Upper & Lower) (79-12243-main)

All new High Lifter APEXX Control Arms are stronger, adjustable and engineered for the most punishing terrain with 1.75" of additional ground clearance and raked forward 1.5". Push your Polaris RZR to the limits and tackle obstacles you couldn't before! Optional preinstalled ball joints.

FEATURES

Adjustable heat-treated collars for camber adjustability with a 1"ť thread
Raked forward 1.5"
Over 3 degrees of camber adjustment in each direction
Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible
Ladder bar compatible with the 1.5"ť ID clamps
Extreme duty 1.5"ť x .120"ť DOM steel construction
Up to 2"ť of added ground clearance compared to OEM lower arm
Mounting accommodations for OEM brake lines using OEM tabs instead of P-clamps
Optimized sway bar linkage angles
Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)
Powder Coated
Custom Colors Available upon request. (Customer must provide paint code)

Heavy Duty Strength
High Lifter"s new heavy duty control arms add more support than factory. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride. High Lifter arms are constructed out of 1.5"ť DOM with .188 wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Built in Adjustability
The lower arms also feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires. When the kit is set to the factory position, you have 3/8"ť of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you"re adding to your ride. This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

Increased Ground Clearance
We maximized ground clearance by strategically arching the lower control arm with double and TRIPLE bends. This unique design allowed us to get an additional 1.75"ť of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We"ve improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

Reinforced Ball Joints Brackets
Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or "śegging"ť of the mounting bracket.

Tire Fitment: Up to 34.5"
Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

Optional Preinstalled Ball Joints
High Lifter"s service team uses a hydraulic press to install the ball joint with the correct pressure and alignment, also making sure the clip is fully seated and secured. Purchasing control arms with the ball joints already installed adds to easy installation and prevents damage due to improper installation, which is not covered by High Lifter"s Lifetime Warranty.
The ball joints preinstalled in this kit are BJP-4.

FITMENT

2022 Polaris RZR 1000 XP Sport
2022 Polaris RZR 1000 XP Premium
2022 Polaris RZR 1000 XP Trails and Rocks
2022 Polaris RZR 1000 XP High Lifter Edition
2022 Polaris RZR 1000 XP 4 Sport
2022 Polaris RZR 1000 XP 4 Premium
2022 Polaris RZR 1000 XP 4 High Lifter Edition
2017 Polaris RZR 1000 XP 4 High Lifter Edition
2017 Polaris RZR 1000 XP 4 EPS
2017 Polaris RZR 1000 XP EPS
2017 Polaris RZR 1000 XP High Lifter Edition
2017 Polaris RZR 1000 XP SE EPS
2017 Polaris RZR TURBO XP EPS
2017 Polaris RZR TURBO 4 XP EPS
2018 Polaris RZR 1000 XP EPS
2018 Polaris RZR 1000 XP High Lifter Edition
2018 Polaris RZR 1000 XP Ride Command
2018 Polaris RZR 1000 XP Trail and Rocks
2018 Polaris RZR 1000 XP 4 EPS
2018 Polaris RZR 1000 XP 4 High Lifter Edition
2018 Polaris RZR 1000 XP 4 Ride Command
2018 Polaris RZR TURBO XP DYNAMIX Edition
2018 Polaris RZR TURBO XP EPS
2018 Polaris RZR TURBO XP 4 EPS
2018 Polaris RZR TURBO XP FOX Edition
2018 Polaris RZR TURBO XP 4 FOX Edition
2019 Polaris RZR 1000 XP EPS
2019 Polaris RZR 1000 XP High Lifter Edition
2019 Polaris RZR 1000 XP Ride Command
2019 Polaris RZR 1000 XP Trail & Rock
2019 Polaris RZR 1000 XP DYNAMIX
2019 Polaris RZR 1000 XP 4 EPS
2019 Polaris RZR 1000 XP 4 High Lifter Edition
2019 Polaris RZR 1000 XP 4 Ride Command
2019 Polaris RZR TURBO XP EPS
2019 Polaris RZR TURBO XP LE
2019 Polaris RZR TURBO XP DYNAMIX Edition
2019 Polaris RZR TURBO XP 4 EPS
2019 Polaris RZR TURBO XP 4 LE
2019 Polaris RZR TURBO XP 4 DYNAMIX Edition
2019 Polaris RZR 1000 XP 4 DYNAMIX
2020 Polaris RZR 1000 XP
2020 Polaris RZR 1000 XP Premium
2020 Polaris RZR 1000 XP Limited Edition
2020 Polaris RZR 1000 XP High Lifter Edition
2020 Polaris RZR 1000 XP 4 High Lifter Edition
2020 Polaris RZR 1000 XP Trail & Rock
2020 Polaris RZR 1000 XP 4
2020 Polaris RZR 1000 XP 4 Premium
2020 Polaris RZR 1000 XP 4 Limited Edition
2020 Polaris RZR TURBO XP
2020 Polaris RZR TURBO XP 4
2020 Polaris Sportsman 570 Touring Premium
2020 Polaris Sportsman 570 6x6
2021 Polaris RZR 1000 XP Sport
2021 Polaris RZR 1000 XP Premium
2021 Polaris RZR 1000 XP Trails & Rocks
2021 Polaris RZR 1000 XP High Lifter Edition
2021 Polaris RZR 1000 XP 4
2021 Polaris RZR 1000 XP 4 Sport
2021 Polaris RZR 1000 XP 4 Premium
2021 Polaris RZR 1000 XP 4 High Lifter Edition
2021 Polaris RZR Turbo XP
2021 Polaris RZR Turbo XP 4
