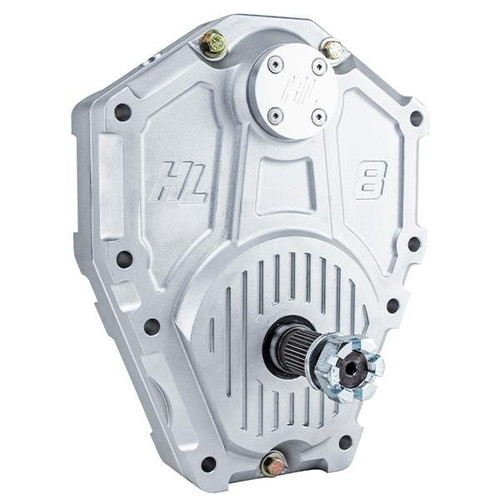

High Lifter Can-Am Defender Portal Gear Lift (6") (60% Dual Idler)

Name: High Lifter Can-Am Defender Portal Gear Lift (6 ) (60% Dual Idler)
Brand: High Lifter
Price: 4595 USD
Availability: InStock

Item# HIL-PGL-660DI-C1D

Description

What are the Dual Idlers with 60% Reduction Kit? This High Lifter Can-Am Defender Max Portal Gear Lift (6") (60% Dual Idler) (PGL-660DI-C1D-1) is engineered as a gearing setup that allows us to place two idler gears in the portal gear box. Our competitor only has a single gear option with their greatest reduction at 45%. The dual idler gears spread the load between twice as many teeth on the gears, which doubles the area and reduces stress by half allowing more abuse. Like any other portal kit there will be a reduction in top speed when running the 6"ť Dual 60% gears. This kit is for riders who are looking for torque and power. The dual 60% is perfect for the hardcore mud rider that wants to hit the holes hard and come out on the other side!

Features

High Lifter improved the portal design by adding a second idler gear in the gear box
The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
You gain more reliable torque transfer
If you run a 40"ť tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears"¦
45% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!

Overview

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant

Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate

These are the strongest backing plates on the market
5/16"ť steel plate with Bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications

13"ť Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

Changeability

The High Lifter 45% Single Idler Kit can be converted to a 60% Single Idler Kit.
This is great for having a less expensive option when you increase tire size. You won"t need a completely new portal kit.

Fitment

2016 Can-Am Defender HD8
2016 Can-Am Defender HD10
2016 Can-Am Defender HD8 DPS
2016 Can-Am Defender HD10 DPS
2016 Can-Am Defender HD8 XT
2016 Can-Am Defender HD10 XT
2016 Can-Am Defender HD10 CAB
2017 Can-Am Defender HD10
2017 Can-Am Defender HD10 CAB
2017 Can-Am Defender HD10 DPS
2017 Can-Am Defender HD10 XT
2017 Can-Am Defender HD8 BASE
2017 Can-Am Defender HD8
2017 Can-Am Defender HD8 DPS
2017 Can-Am Defender HD8 XT
2018 Can-Am Defender HD10
2018 Can-Am Defender HD10 DPS
2018 Can-Am Defender HD10 XT
2018 Can-Am Defender HD10 CAB XT
2018 Can-Am Defender HD8
2018 Can-Am Defender HD8 DPS
2018 Can-Am Defender HD8 XT
2018 Can-Am Defender HD8 CAB XT
2018 Can-Am Defender HD10 XMR
2018 Can-Am Defender HD10 XTP
2019 Can-Am Defender HD10 DPS
2019 Can-Am Defender HD10 XT
2019 Can-Am Defender HD10 XTP
2019 Can-Am Defender HD10 XMR
2019 Can-Am Defender HD10 CAB
2019 Can-Am Defender HD8
2019 Can-Am Defender HD8 DPS
2019 Can-Am Defender HD8 XT
2019 Can-Am Defender HD8 CAB
2020 Can-Am Defender HD10 DPS
2020 Can-Am Defender HD10 XT
2020 Can-Am Defender HD10 XTP
2020 Can-Am Defender HD10 XMR
2020 Can-Am Defender HD10 CAB XT
2020 Can-Am Defender HD8
2020 Can-Am Defender HD8 DPS
2020 Can-Am Defender HD8 XT
2020 Can-Am Defender HD8 CAB XT
2020 Can-Am Defender HD5
2020 Can-Am Defender HD5 DPS
2020 Can-Am Defender HD10 Mossy Oak Edition
2021 Can-Am Defender HD10 DPS
2021 Can-Am Defender HD10 LTD CAB
2021 Can-Am Defender HD10 XMR
2021 Can-Am Defender HD10 XT
2021 Can-Am Defender HD8
2021 Can-Am Defender HD8 CAB DPS
2021 Can-Am Defender HD8 DPS
2021 Can-Am Defender HD8 XT
2021 Can-Am Defender HD5
2021 Can-Am Defender HD5 DPS
