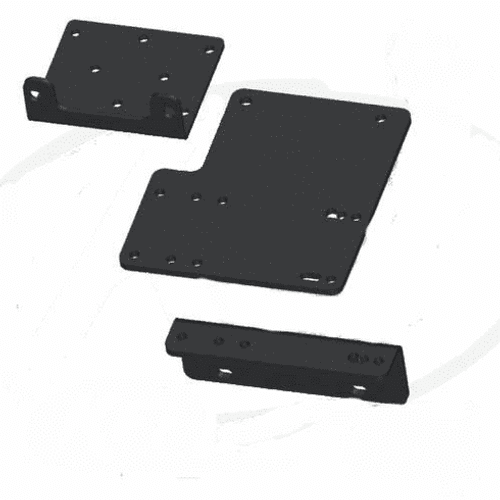

Kawasaki Mule 4000 Series Winch Mount

• 2009-2013 Kawasaki 4000 Series Mule
• 2009-2013 Kawasaki 4010 Series Mule

• 2009-2013 Kawasaki 4010 Series Mule Diesel
• 2014 Kawasaki 4010 Series Mule Diesel (will not work with KFI Winch U4500, U4500w, SE45 or SE45w)
• 2014-2016 Kawasaki 4000 Series Mule (will not work with KFI Winch U4500, U4500w, SE45 or SE45w)

• 2014-2016 Kawasaki 4010 Series Mule (will not work with KFI Winch U4500, U4500w, SE45 or SE45w)

Designed to work with the following winches:

• KFI:  ST17 / S2000 / A2500 / A3000 / U4500 / U4500w / SE25 / SE35 / SE45 / SE45W
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN: Vantage 4000lbs / Provantage 4500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK : 1500lbs #2955AT
      - Requires a Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
• CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND : 2000lb #68146 / 2500lb #61297 / 2500lb #61840 / 2500lb #61258
• BADLAND : 3000lb #68145 / 3500lb #61257 / 3500lb #61383 / 5000lb #68144 / 5000lb #61384
• CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 13501(reqires rollers)
• CHAMPION : 14501 / 14551 / 14552 / 14008 / 40252 (4500lbs)
• CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 / 12003
• CHAMPION: 14001 and 14061 / 14008 / 14051
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER : KT2000
      - Requires purchase of a roller Fairlead (KFI #ATV-RF)
• SMITTYBILT : XRC 2.0
      - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
      - Listed Models come with incorrect ATV Roller Fairleads
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
      - 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM:  2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
      - All with 3.00" x 4.875" Bolt Pattern mount-up
      - All with 3.00" x 6.600" Bolt Pattern mount-up
• Traveller: 1078302 / 1078088 / 1078311

• Possibly Many others with the below standard Mounting patterns (call to confirm)
      - 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
      - 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern)
      - 2-Hole (3.10" with Rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35

Specifications:

• 100% MADE IN USA
• Constructed of 1/4”  steel
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed
• Roller fairlead and winch not included

Usually ships in 2-3 business days
