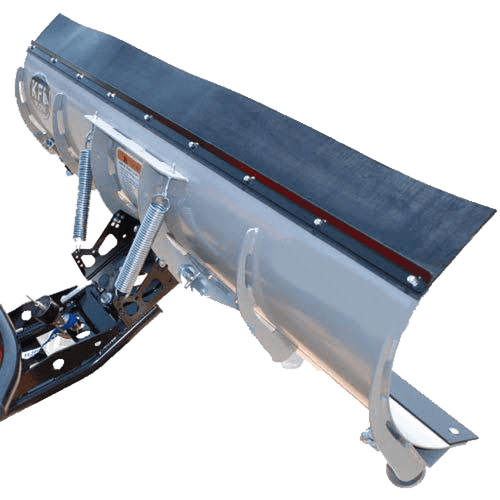

Put your Axis UTV to work in the winter with the Open Trail Snow Plow Kit from KFI. KFI Snow Plow Kits are made in the USA engineered to withstand the varying harsh conditions of winter. Mounting options are available for all Axis UTV models.
Plow Kit come complete with:(1) Plow Blade (your choice of size)
(1) UTV Push Tube
(1) Vehicle Specific Mount (make sure to select your correct vehicle above)
- Does not included winch or winch mount
- Most Ranger Plow Mounts include lower 2" Receiver Hitch, some Ranger models and All General models do not
- Requires Stock Front Bumper
- 54" and 60" blades do not include 2-ply top rubber flap, must be purchased separatelyAll Plow Components Feature:
Complete installation instructions included
All mounting hardware included
KFI satisfaction guaranteed
2-Year KFI Warranty
Powdercoated for maximum durability
Components are metal bead blasted before they are powder coated for the best possible finish prep.
100% Made in the USA

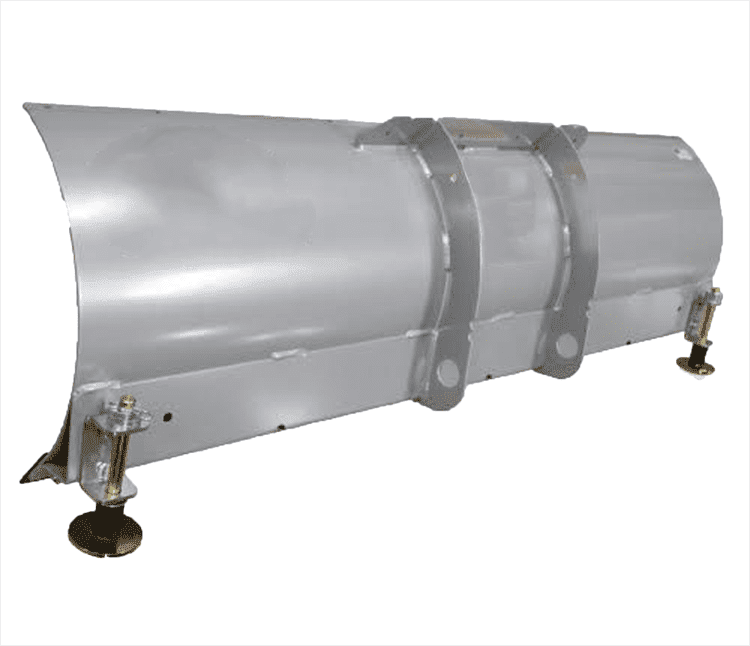

UTV Straight Plow Blades:
Pushes snow straight ahead or to the sides up to 25 degrees
Added gusseting for the wider width and heavier UTV
Includes a 7" high 2-ply top rubber flap
Measures 16" Tall and 54", 60", 66" or 72" Wide
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
UTV Pro Poly Plow Blades:
3/16” Grade 50 Steel Rib and Frame construction
Shot Blasted and Powder Coated Black Steel Frame
Flexible Heavy Duty Black Poly face
Same weight as steel blades
2-Sided 3/16” Grade 50 Steel attached with Grade 8 bolts
Includes Plow Markers
Replaceable Blade Face
66” and 72” Options
Includes snow flap
Dual Curvature face for supreme snow moving
21” Vertical blade face height with an approximate 27” height with snow flap
Heavy Duty 1/2” thick Adjustable Skids
Pro 2.0 UTV Push Tubes:
Front Mount Design with 30"+ of lift height
100% MADE IN USA
2" Longer Than Previous Push Tube #105635
Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
6" Diameter POM Injection Molded Rotator Bushing
Easy-Pull Pin Blade angle adjustment
Multi-position Plow Lift Bracket
6 five degree blade pitch adjustments
3 blade angle positions that rotate the blade up to 25 Degrees
Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep
Powder Coated Black for supreme durability
Complete installation instructions included
All mounting hardware included
2-Year KFI Warranty
UTV Plow Mount:
Front-Mount System
Plate constructed from 3/16" Grade 50 Steel
All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
All Plow tabs are tapered to help reduce hang-ups while trail riding
This item usually ships in 2-3 business days.
