DESCRIPTION

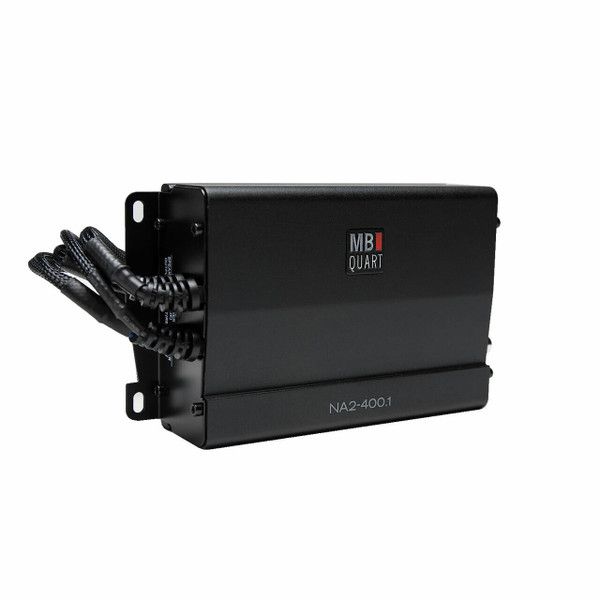

MB Quart compact Two Channel, 400 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors.
Features
- Marine Grade Protection / IPX Rating
Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture. IPX5 - Low Noise Preamplifier Circuit
Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. - RCA Inputs
1 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. - Operation Mode
Two channel operation: Flexible installation allows this amplifier to run in two channel or bridged mono mode. - Crossover Type
Switched FULL / LPF / HPF: Complete control of amplifier signal, essential when using two or more amplifiers. - Class / Topology
Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink. - Output Device Technology
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. - Heat Sink
Aluminum: Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration. - Power Supply
Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. - Output Connections
Quick Dissconect Wires, RCA Connections: Quickly remove amplifer when you are putting machine up for the winter of as a security precaution. - Connection Type
Nickel-plated connections: Nickel plated corrosion resistant connections. - LED System Protection Circuitry Diagnostics
Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
Specifications
| Weight | 2.12 lbs |
|---|---|
| Dimensions | 6.8 x 3.93 x 1.77 in |
| Type | Amplifier |
| Brand | MB Quart |
| Series | Nautic |
| Category | Marine, Powersports |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Amp Class | Full Range Class D |
| Amp Total Channels | 2 |
| Amp Max Power (watts) | 400 |
| Amp Power @ 2 Ohms (ch x watts) | 2 x 200 |
| Amp Power @ 4 Ohms (ch x watts) | 2 x 100 |
| Amp Crossover | Electronic |
| Amp Variable Low Pass Crossover 12dB per Octave | CH1 & CH2: 300Hz |
| Amp Bass Boost | 0-12dB @ 45Hz |
| Amp Subsonic Filter | 60Hz |
| Amp Variable Voltage | 0.2-9V |
| Amp Signal to Noise | > 90dB |
| Amp Frequency Response | 20Hz-20kHz |
| Amp Speaker Level Audio Inputs | RCA |
| Amp Power Terminal 12v/GND | Molex 10 GA |
| Amp Speaker Terminal Wire Gauge | Molex Plug Connector |
| Amp Fusing | 30A x 1 |
