Name: MB Quart Reference Component 2-Way Speaker System (6.5")
Brand: Mb Quart
SKU: MBQ-RS1-216
Price: 159.95 USD
Availability: InStock

MB Quart Reference Component 2-Way Speaker System (6.5")

(No reviews yet) Write a Review

$159.95

item#:

MBQ-RS1-216

Description

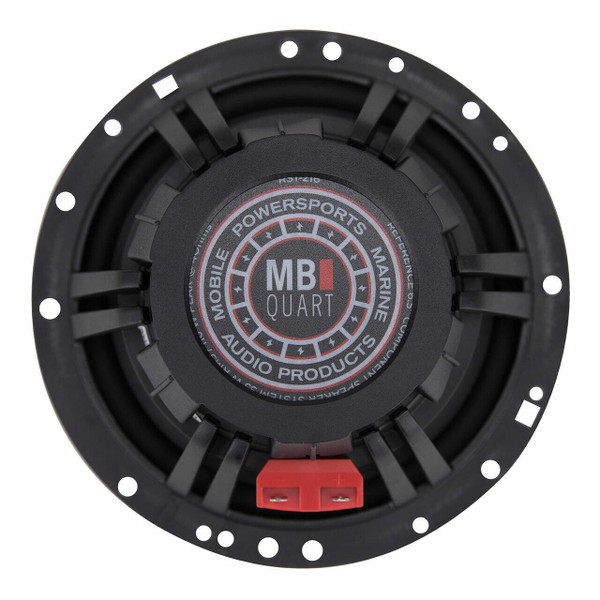

MB Quart Reference Component 2-Way Speaker System (6.5")

MB Quart 6.5" Reference Component 2-Way speakers engineered with .75" Titanium dome WideSphere Technology Tweeters with lightweight craft pulp Bamboo fiber cones mounted to an inert frame (which adds no harmonic distortions). The components system features an audiophile external crossover network.

The term œreference in audio refers to the recording studio. What is the reference for how a piano or a guitar is supposed to sound? With MB Quart, Reference line is designed to be the œgo-to for how an audio system in a vehicle is supposed to sound.

Details and Specifications

Weight	5.5 lbs
Dimensions	18.5 x 8 x 3.5 in
Type	Speaker
Brand	MB Quart
Series	Reference
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Speaker RMS Power Handling (watts)	55/110 Each & System
Speaker Peak Power Handling (watts)	110/220 Each & System
Speaker Impedance (ohms)	4
Speaker Frequency Response	58Hz-20kHz
Speaker Sensitivity	87.7dB
Speaker Crossover Slope	12dB/octave
Speaker Height (in)	2.71
Speaker Mounting Diameter / Cut Out (in)	5.59
Speaker Outside Diameter (in)	6.57
Speaker Mounting Depth / Chassis Depth (in)	2.48
Speaker Size (in)	6.5

Features

Tweeters	.75 titanium dome tweeters utilizing WideSphere Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
Cone Material	The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
Surround / Cone Coupling	High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
Gasket	Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
-Voice Coil / Former Assembly	High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
Spider	Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
Cooling System	Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil. Tweeters feature Positive Thermal Coefficient (PTC) technology.
External Component Crossover	Reference component (2-way) designs feature an external audiophile crossover network which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality. These networks are passive Cauer topology Butterworth filter crossovers for a smooth transition of frequencies from midrange/mid-bass to the tweeter element designed into a compact crossover housing that can be easily hidden in the installation.
Tweeter Hardware	Hardware for surface mounting and flush mount the tweeter.
Frame	Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.
Grills	Included
