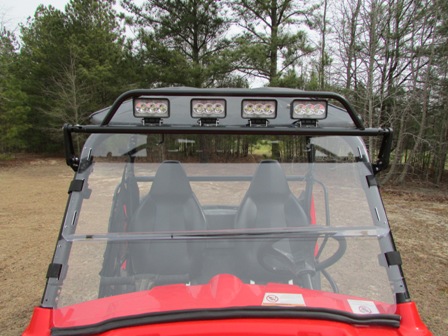

Seizmik Universal L.E.D Light Bar 1.75" - RZR / Ranger / Rhino / Bobcat / GatorZoom

Seizmik Universal L.E.D Light Bar 1.75" - RZR / Ranger / Rhino / Bobcat / Gator

Item# 15-0816
$360.99$379.95You Save - $18.96 (5%)
Qty:

Description



Use Promo Code: seizmagic at checkout for a special surprise









1.75" Bar Fits: Bad Boy MTV Bad Boy Buggy Ambush Bobcat UTV Cub Cadet Volunteer John Deere Gator HPX John Deere Gator XUV (except Deluxe Cab) John Deere Gator RSX Polaris Full Size Ranger (except 2013 Ranger XP900) Polaris Mid Size Ranger Polaris RZR Yamaha Rhino or any other 1.75"

Bar 2.0" Bar Fits: Can-Am Commander Can-Am Maverick Kubota RTV900 Kubota RTV1140 Kubota RTV-X900 Kubota RTV-X1120D Kawasaki Teryx Mule 3000 or 4000, or any 1.875"-2" Bar



Specifications:
Total Lumens: 3240
Total Operating Voltage: 40-120V DC
Color Temperature: 6000k (cool blue white)
Waterproof Rate: 1 meter (IP 67 standard)
Housing Material: Diecast Aluminum
Mounting Bracket: Stainless Steel
Total Current Draw: 4.5A @ 12v / 2.3A @24v
Total Wattage: 54w total (2 x 9w & 2 x 18w)

Includes both Spot (2 light fixtures)
and Flood (2 lights fixtures)


Spot
1080 Lumens
(6) 3 watt LEDs (18 watts total)
1.4 A @12V, 0.75A @ 24V current draw
(2) LED Spot Fixtures included

Flood
540 Lumens (each)
(3) 3 watt LEDs (9 watts total)
0.85A @ 12V, 0.42A @ 24V current draw
(2) LED Flood Fixtures included

Universal Mounting System
The innovative and highly adaptable system allows the light bar to be mounted in a wide variety of configurations. Comes complete with bar, mounting hardware, lights, harness and switch- everything requiredto setup and go. Installation is quick and easy with no drilling required.

Variable Angle Knuckles

Knuckle joint conforms to different roll cage angles.



Adjustment Linkage

Dual pivot linkage allows bar to be adjusted up, down, forwards, or backwards in an arc motion while keeping the lights aimed where desired.
Allows the light bar position to be adjusted to work with flip windshields, different roof overhangs, running the light bar high or low.



Multi-directional Light Aiming

Each fixture can be individually aimed up, down, left or right.
Point the 2 center spots straight and angle the 2 outside floods to point out slightly for optimum illumination

Additional Features:

Bar Clamp
Bar clamp fits tight to roll cage
Installs fast, no drilling required

Steel Construction
Sturdy, heavy duty steel construction

Light Guard
Steel bar protects the lights from damage

Telescoping Arm
Light bar can expand and contract to conform to different mounting point widths



Usually ships in 2-3 days
