Super ATV | 2017+ Can-am Maverick X3 | 8" Portal Gear Lift

Fits the Following 64" Models:
Can-Am Maverick X3 900 : 2018
Can-Am Maverick X3 Turbo : 2017-2020
Can-Am Maverick X3 Turbo R : 2018-2020
Can-Am Maverick X3 X DS Turbo R : 2017-2020
Can-Am Maverick X3 DS Turbo R : 2021
Can-Am Maverick X3 X DS Turbo RR : 2020-2021
Can-Am Maverick X3 X MR Turbo : 2018-2021
Can-Am Maverick X3 MAX Turbo : 2017-2020
Can-Am Maverick X3 MAX Turbo R : 2018-2020
Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
Can-Am Maverick X3 MAX X DS Turbo R : 2020
Can-Am Maverick X3 MAX DS Turbo R : 2021
Can-Am Maverick X3 DS Turbo 64 : 2022+
Can-Am Maverick X3 DS Turbo RR 64 : 2022+
Can-Am Maverick X3 X DS Turbo RR 64 : 2022+
Can-Am Maverick X3 X RC Turbo RR 64 : 2022+
Can-Am Maverick X3 X MR Turbo RR 64 : 2022+
Can-Am Maverick X3 MAX DS Turbo 64 : 2022+
Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+
Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+

Fits the Following 72" Models:
Can-Am Maverick X3 X RC Turbo : 2018-2021
Can-Am Maverick X3 X RC Turbo R : 2018-2020
Can-Am Maverick X3 X RC Turbo RR : 2020-2021
Can-Am Maverick X3 X RS Turbo R : 2017-2020
Can-Am Maverick X3 RS Turbo R : 2021
Can-Am Maverick X3 X RS Turbo RR : 2020-2021
Can-Am Maverick X3 X MR Turbo R : 2018-2019
Can-Am Maverick X3 X MR Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020
Can-Am Maverick X3 MAX RS Turbo R : 2021
Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021
Can-Am Maverick X3 RS Turbo RR 72 : 2022+
Can-Am Maverick X3 X RS Turbo RR 72 : 2022+
Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+
Can-Am Maverick X3 X RC Turbo RR 72 : 2022+
Can-Am Maverick X3 X MR Turbo RR 72 : 2022+
Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+
Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+
Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+
Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+

Wheel Requirements:
-22” or larger wheel required
-Wheels cannot exceed 5” backspacing
-Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

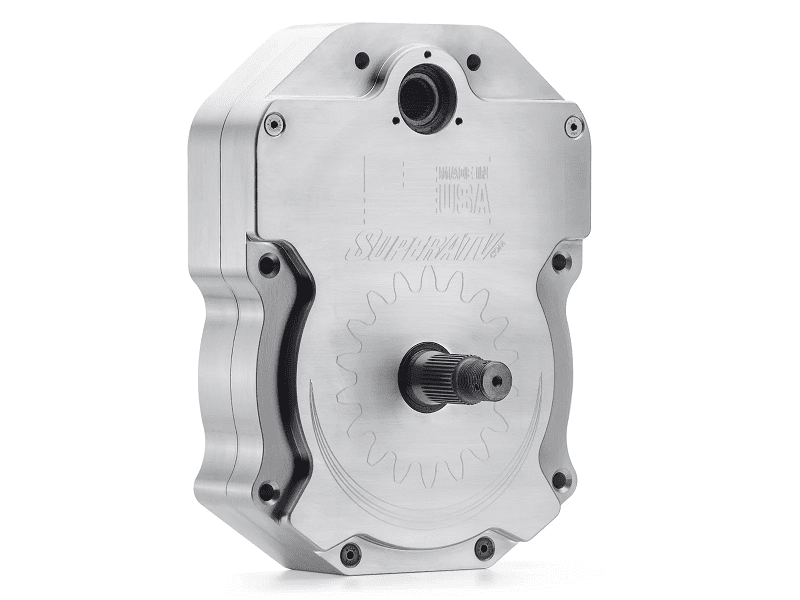

The 8” GDP Portal Gear Lift transforms your Can-Am Maverick X3, giving you clearance for up to 40” tires and unmatched torque with 45%, 60%, or 70% gear reductions. Designed for mud enthusiasts, this lift boosts performance with dual idler gears made from durable 9310 steel, ensuring reliable torque transfer and drivetrain protection by placing the gear reduction in the hub.

Choose between cast or 6061 billet aluminum housings and advanced steel alloy backing plates for maximum strength. The lift includes advanced seals, bearings, and reinforced oil flow to prevent leaks and ensure durability.

A frame stiffener is required to handle the added power and weight. Backed by expert customer support, these portals are built for serious riders looking to dominate on and off the trail.

8” Portal Gear Lift Kit Includes:
-(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
-(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
-(4) Specialized steel alloy backing plates
-(4) Steel caliper mounting plates
-Extended brake lines
-Steering stop kit (dual idler configuration only)
-All required hardware, including recessed castle nut socket
-Frame stiffener (optional)

Features:

Available with billet or cast aluminum housing

Dual idler gear configuration maximizes strength

Cool, quiet, precision ground gears made from 9310 alloy billet steel

1.5 in. forward and rear offset

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel drive shaft

Housings use advanced gaskets or O-rings that don’t let anything through

Universal hub fits all major bolt patterns

Gear reduction reduces stress on your drivetrain

If you are curious about how to install this product, you can view the Install Instructions here.

If you are curious about how to install this product, you can view the Install Instructions here.

If you are curious about how to install this product, you can view the Install Instructions here.

This item usually ships in 2-3 business days.
