SuperATV Can-Am Commander 4" Portal Gear Lift

SuperATV Can-Am Commander 4" Portal Gear Lift (PGH-7-14)

Gen 3 Portals Are Geared for All

You don't ride your Commander exactly the same as anybody else, that's why GDP Portals are geared for all. You get to choose whether you need a 15% or 30% gear reduction, and you get to choose whether you want a cast or billet housing. We don't put you in a box. Love big tires and big mud holes? Go 30%. Prefer keeping your suspension closer to stock and hitting the trails? Try 15%. Ride the way you want where you want. GDP will take you there.

GDP the Most Trusted Name in Portals

No matter how you choose to ride, one thing is clear, you want to ride on the most trusted portal system you can get. More people roll on GDP portals than any other portal system, so you can bet they're trail proven and rider approved.

Perfect for Mud

If you love getting down and dirty in some mud hole, you owe it to yourself to do it with a set of GDP Portals installed. With boosted torque and more clearance for those mud tires you love, it's no wonder that GDP dominates every mud park you go to.

A Gear Reduction That Protects Your Drivetrain

Portals put their gear reduction right in the hub. At the same time that it's boosting your torque, it's also protecting your drive train. It reduces stress on your axles, differential, prop shaft, and transmission so you can ride harder than stock and do less damage than stock.

Learn more about how tire size and gear reduction can unleash your machine's potential.

Unmatched Gear Material

Top-of-the-line portals require top-of-the-line gears. GDP uses precision ground 9310 alloy steel gears that mate perfectly each and every time. That means they're super smooth, super quiet, and won't break when you have the pedal floored.

Stronger Housings by Design

Housings are the strongest housings you can get with clever design, smart manufacturing, and careful assembly. We have the experience to make both our cast aluminum and USA-made billet aluminum housings strong because we've already made, and sold, tens of thousands of them. We know what works and what doesn't there's no guesswork here.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good we know because we tested them

The Strongest Portal Backing Plates You Can Get

The advanced steel alloy that we use in our portal backing plates is stronger than chromoly. With 5/16"� thick plates and gussets, you can be sure that these plates will hold your suspension and hub together, and that they won't bend or break when you're out on your weekend ride.

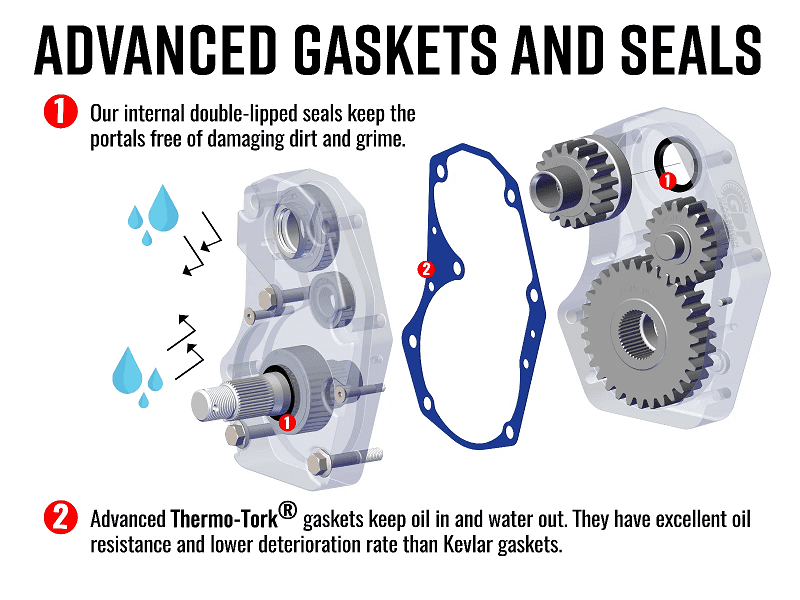

Advanced Gaskets and Seals

Whether you go with cast or billet, both housings use:

• Advanced Thermo-Tork gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Bearings That Rock

Even the bearings are top-notch on every which way a portal can fail. Made from a double-angular contact bearing as our output bearing. It's designed to keep your output shaft running true under heavy load and extreme abuse. The idler bearings are super tough roller bearings.

Universal Hubs and Slotted Rotors

Designed to give you the braking power needed. Also include universal hubs, just to make things easier. With 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs, free to run just about any size ATV wheels. Also invented the tapered output shaft that our hubs attach to. It gives more secure lock that won't wobble or wear over time.

Extended Trailing Arms Designed for Rhino Axles

These portals come with 4"� extended rear trailing arms. That extended wheelbase gives you more stability and clearance for larger tires, and the trailing arms come complete with all bearings. Because of that longer wheelbase, these portals require Rhino or Rhino 2.0 axles. They're built for the high articulation you get with a longer wheelbase, and their chromoly shaft and CV joints make them super strong and durable for any riding application.

4"� Portal Gear Lift Includes

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (2) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (2) Caliper adapter plates
• (2) Steel steering arms
• (2) 4"� extended rear trailing arms with backing plates
• Extended brake lines
• All required hardware, including recessed castle nut socket

Features

• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use Thermo-Tork gaskets that don't let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Weighs 194 lb. total, which is 50+ lb. lighter than the competition

Wheel Requirements

• 14"� or larger wheel required
• Wheels cannot exceed 5"� backspacing
• Not compatible with dual beadlock wheels

Fitment

Kit 1 Will Fit:

• Can-Am Commander 800 : 2011-2015
• Can-Am Commander 1000 : 2011-2015

Kit 2 Will Fit:

• Can-Am Commander 1000 Max: 2014-2015

Kit 3 Will Fit:

• Can-Am Commander 800 : 2016-2020
• Can-Am Commander 1000 : 2016-2020

Kit 4 Will Fit:

• Can-Am Commander 800 Max : 2016-2020
• Can-Am Commander 1000 Max : 2016-2020

Overall Fitment

• Can-Am Commander 800 : 2011-2020
• Can-Am Commander 1000 : 2011-2020
• Can-Am Commander 800 Max : 2016-2020
• Can-Am Commander 1000 Max : 2014-2020

NOTE

• Not compatible with SuperATV 6" lift kit
• Not compatible on Commanders with factory air shocks
• Requires Rhino or Rhino 2.0 axles
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1"� wheel spacer.
• Rhino or Rhino 2.0 Axles required.
