SuperATV Polaris Ranger 1000 Diesel 6" Portal Gear Lift

SuperATV Polaris Ranger 1000 Diesel 6" Portal Gear Lift

Gen 3 Portals are Geared for All
SuperATV's GDP 6"¯ Portal Gear Lift for the Polaris Ranger 1000 Diesel gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub which means they maintain suspension geometry and reduce drivetrain stress. Customize by choosing between a 30% or 45% gear reduction and selecting a cast or billet aluminum housing. GDP portals are truly geared for all. See what customer Goose Bellows has to say about our 6"¯ portals on his Instagram famous Can-Am Maverick XRS, aka Lil Buckin' Crazy.

45%"“Perfect for Mud
Install big 6"¯ portals with a 45% gear reduction to get clearance for huge tires and a massive boost in torque. It'll turn your monster tires like they're stock and take your Ranger Diesel through the biggest, thickest mud holes you can find. These portals are built for performance, and your new mud chewin' party wagon proves it.

45%"“Perfect for Rocks
A 6"¯ portal box with a 45% gear reduction gives you tons of torque to crawl over any rock or boulder you can find. With that much power, rock shelves will feel like speed bumps and boulders feel like pebbles. With 6"¯ of clearance, you can run bigger tires and crawl through tougher rock gardens.

30%"“Perfect for Everything
A 30% gear reduction lets you turn bigger tires and gives you the versatility to run mud, dominate trails and hills, and maintain high speed on the road. It gets your power to the ground to make your UTV more versatile anywhere you ride.

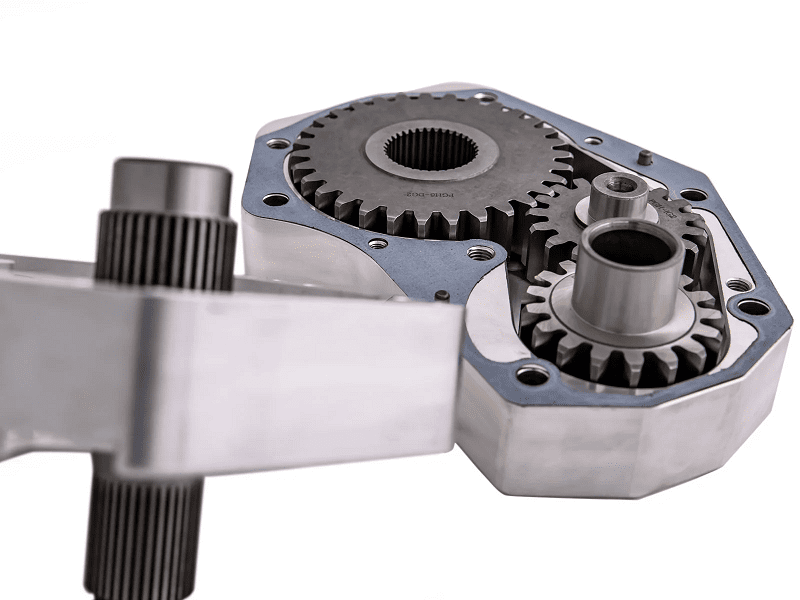

Better Gears
SuperATV ensures the highest quality gears by employing precision grinding techniques and utilizing 9310 billet steel alloy. These gears are engineered to deliver exceptional strength and perform reliably even at high speeds. With their cool and quiet operation, SuperATV gears maintain optimal performance even when pushing the throttle to the limit. Riders can have confidence that these gears possess the durability to withstand every ride, providing a smooth and powerful experience on and off the road.

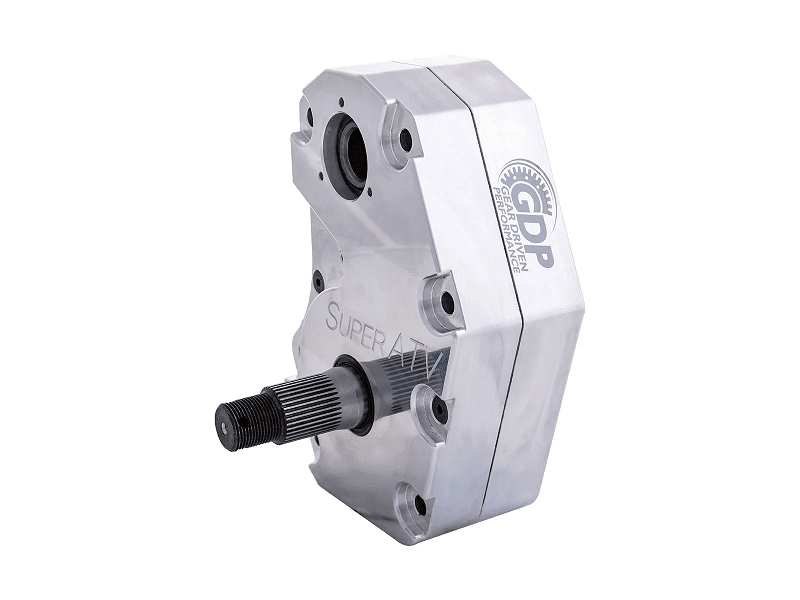

Stronger Housings by Design
If you're looking for the strongest gear boxes you can get, look no further. We make our gear boxes by design, and the hundreds of thousands of ride hours prove that our housings have what it takes to go hard. Whether you want a gorgeous, USA-made billet aluminum housing or a cast aluminum housing, you know you're getting stronger housings made with unmatched experience.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good we know because we tested them

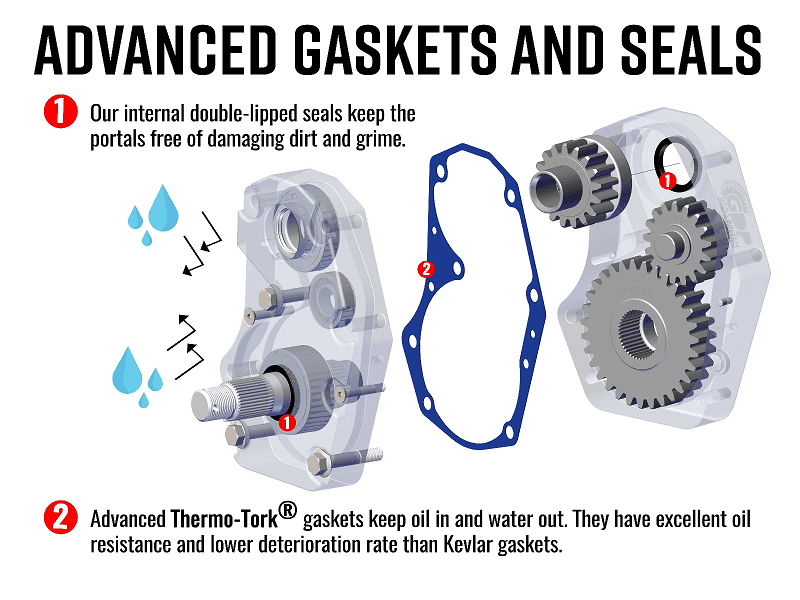

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Patent # 11,299,042

FEATURES

• Available with billet or cast aluminum housing
• 9310 alloy billet steel precision ground gears are cool and quiet
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions

Wheel Requirements:

• 18"¯ or larger wheel required
• Wheels cannot exceed 5"¯ backspacing

FITMENT

• Polaris Ranger 1000 Diesel : 2015-2018
• Polaris Ranger 1000 Diesel Crew : 2015-2018

NOTE

• Will Not fit the Ranger 900 Diesel
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1"¯ wheel spacer.
