Fits: Polaris RZR S 1000 : 2016-2020
Polaris RZR S4 1000 : 2019-2020
Wheel Requirements: 22" or larger wheel REQUIRED
Wheels CANNOT exceed 5" backspacing
Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1 wheel spacer

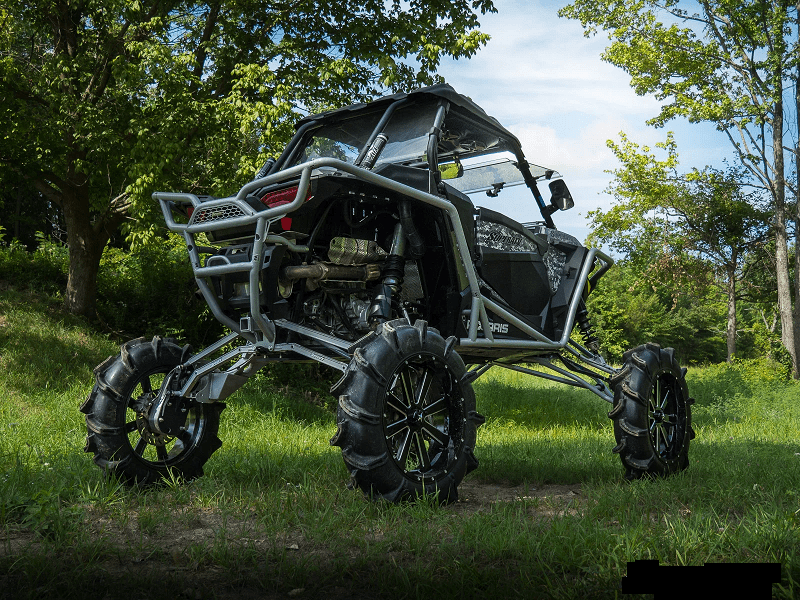

Upgrade your Polaris RZR S 1000 with an 8 GDP Portal Gear Lift from Super ATV for unmatched ground clearance and torque with your choice of a 45% or 60% gear reduction.
Perfect for mud, rocks, and extreme terrain, GDP portals are the most trusted name in the industry - proven by thousands of riders.

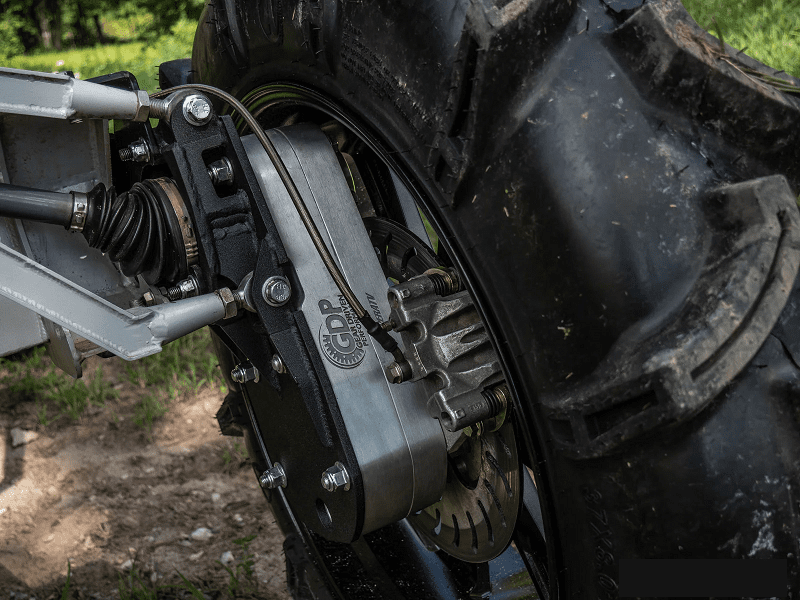

The gear reduction is placed in the hub (not the transmission), reducing stress on your drivetrain. Built with 9310 alloy steel gears, reinforced billet or cast aluminum housings, and 5/16 thick advanced steel backing plates, these portals are engineered for extreme durability.
Advanced seals prevent leaks, and double-angular contact bearings ensure reliability under harsh impacts. Includes universal hubs with multiple bolt patterns and slotted rotors for excellent braking.
A frame stiffener is recommended to support the added lift and torque.
Kit Includes:

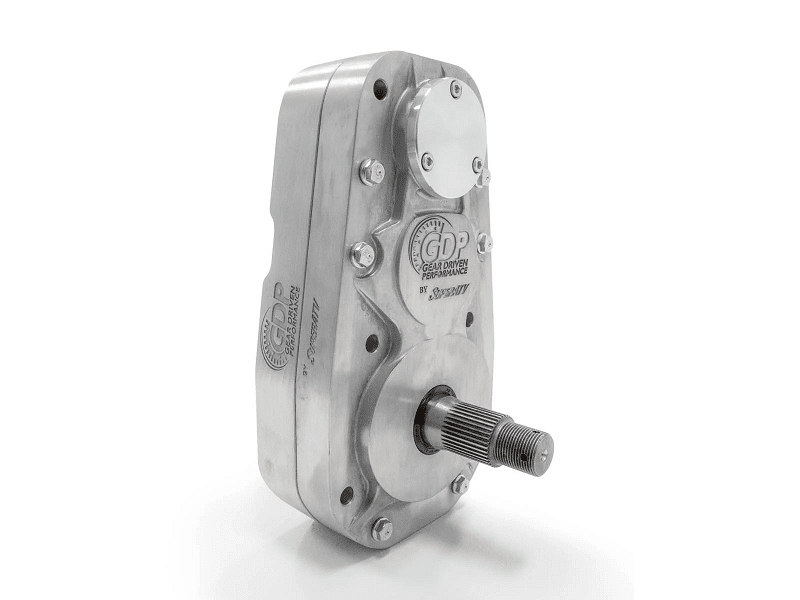

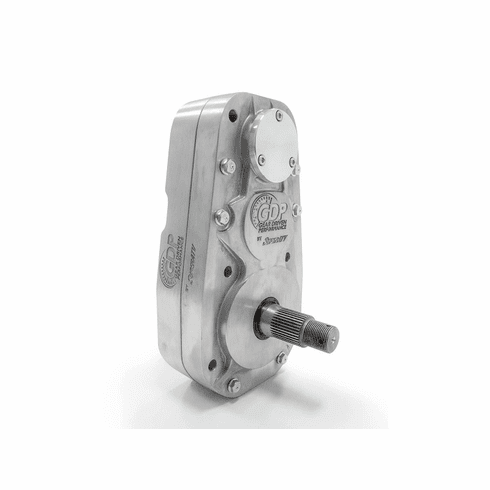

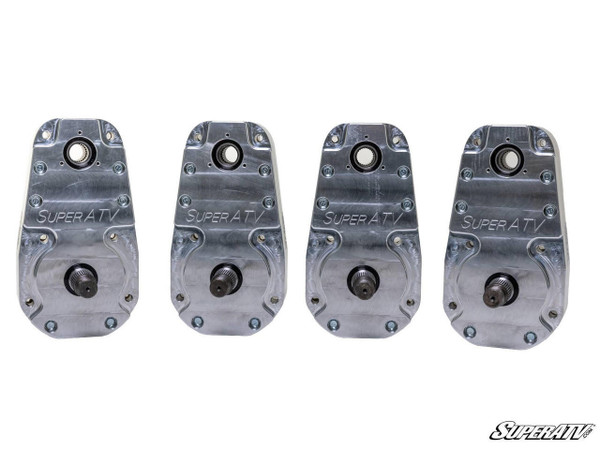

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings

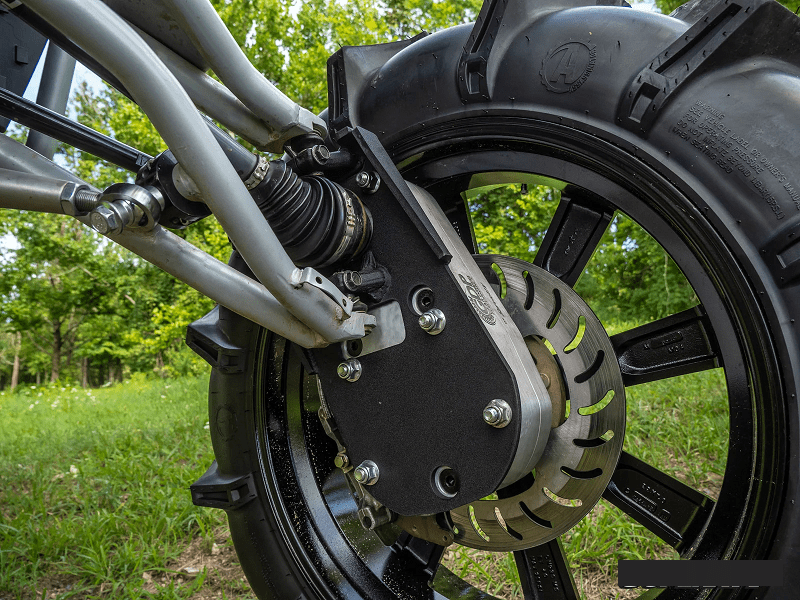

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(8) Rear backing plate bushings
Extended brake lines
All required hardware, including recessed castle nut socket
Frame Stiffener (must select at checkout)
Features:
Available with billet or cast aluminum housing

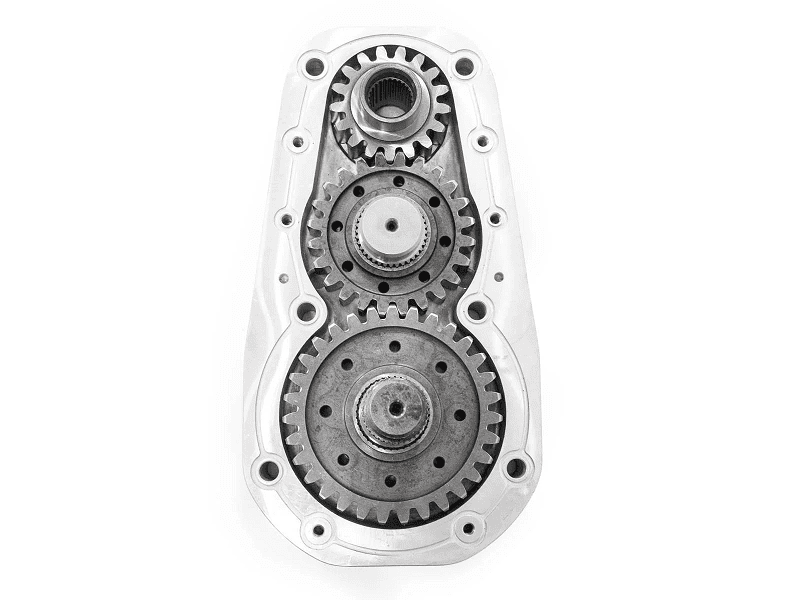

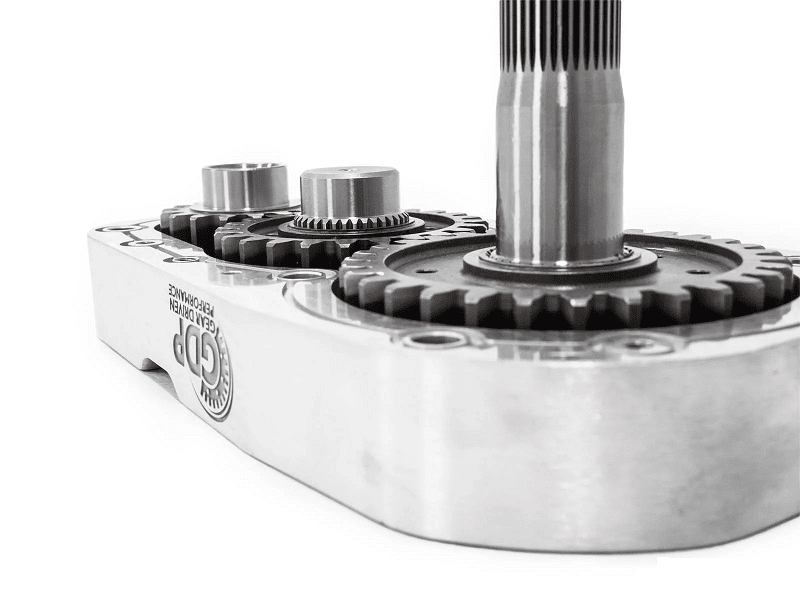

Cool, quiet, precision ground gears made from 9310 alloy billet steel
1.5 in. diameter 4340 hardened steel drive shaft
Increases width by 4 in. per side (8 in. total)
1.5 in. forward and rear offset
Housings use Thermo-Tork gaskets and rubber O-rings that don't let anything through
Universal hub fits all major bolt patterns
Gear reduction reduces stress on your drivetrain
.
