Fits: Polaris RZR XP Turbo : 2016+
Polaris RZR XP 4 Turbo : 2016+

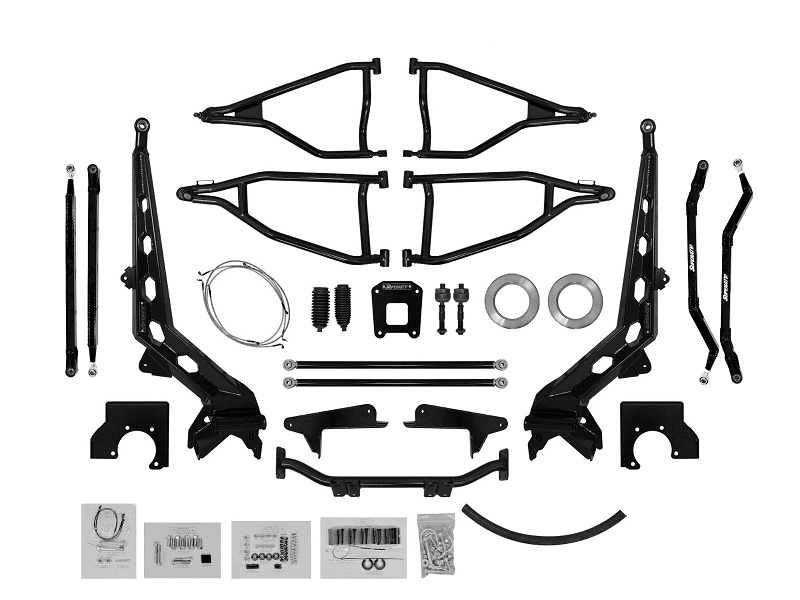

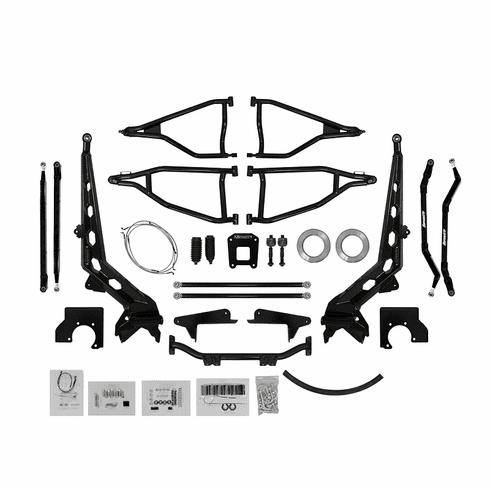

NOTE: If running stock wheels you will NEED 1" wheel spacers. Super ATV's 10 Lift Kit for the Polaris RZR Turbo transforms your machine into a trail-dominating beast with true-to-size lift, clearance for 36" tires, and unmatched durability.
Built with heavy-duty steel A-Arms, radius arms, and trailing arms, plus UHMW bushings and a lifetime warranty, this kit is made to handle the toughest rides. It maintains your turning radius and ride quality with precision-engineered geometry. Upgrading to X300 axles adds extreme strength and drivetrain protection thanks to 300M steel that flexes under stress.
The kit also includes a steering stop to reduce tire rub and protect axles during sharp turns.
Features: Front A-arms
-Heavy-duty
-High-clearance

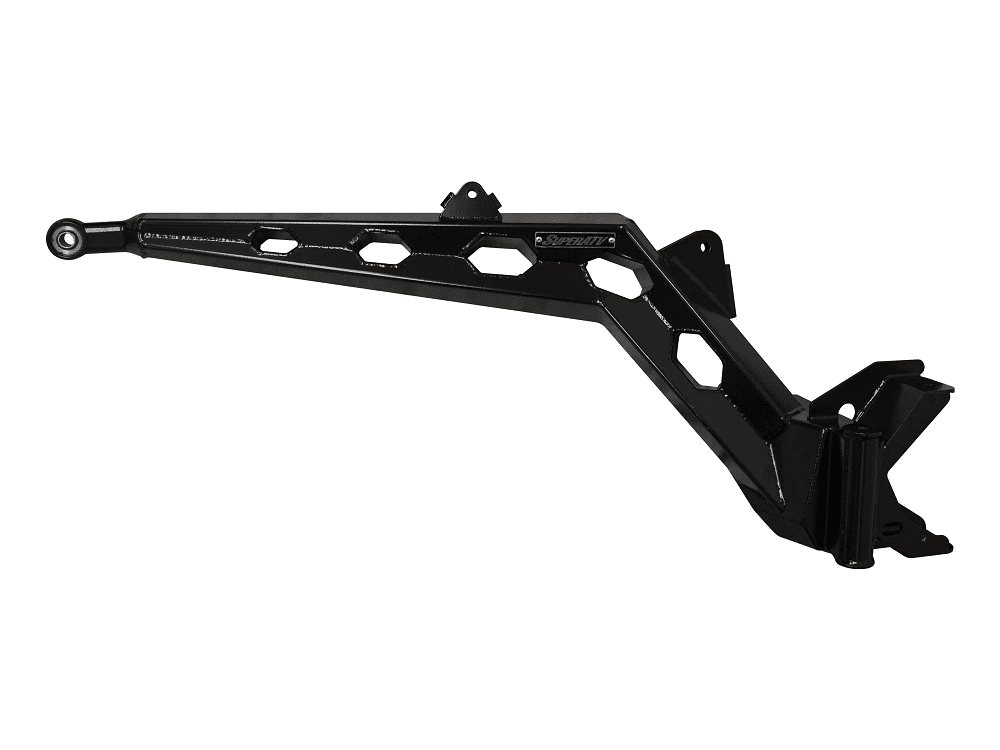

Rear trailing arms
-Heavy-duty
-High-clearance
-Fully adjustable
-1" rear offset
Rear radius arms
-Heavy-duty
-High-clearance
-Heim joints for full adjustment
(4) axles included (X300, Rhino 2.0, or Rhino)
Includes UHMW bushings
Extended brake lines
5-1/2" Increase In front track width to increase stability
6" Increase In rear track width to increase stability
All necessary hardware for easy install
Lifetime warranty on all A-arms
Does not Include ball joints
Front sway bar will not be used

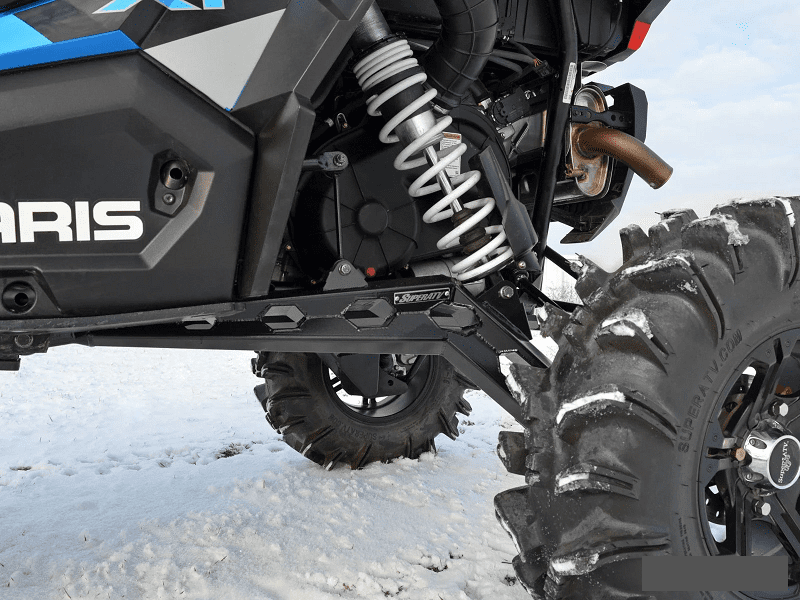

Run up to 36" tires (Shown With Terminator Tires Size 34x10-15)

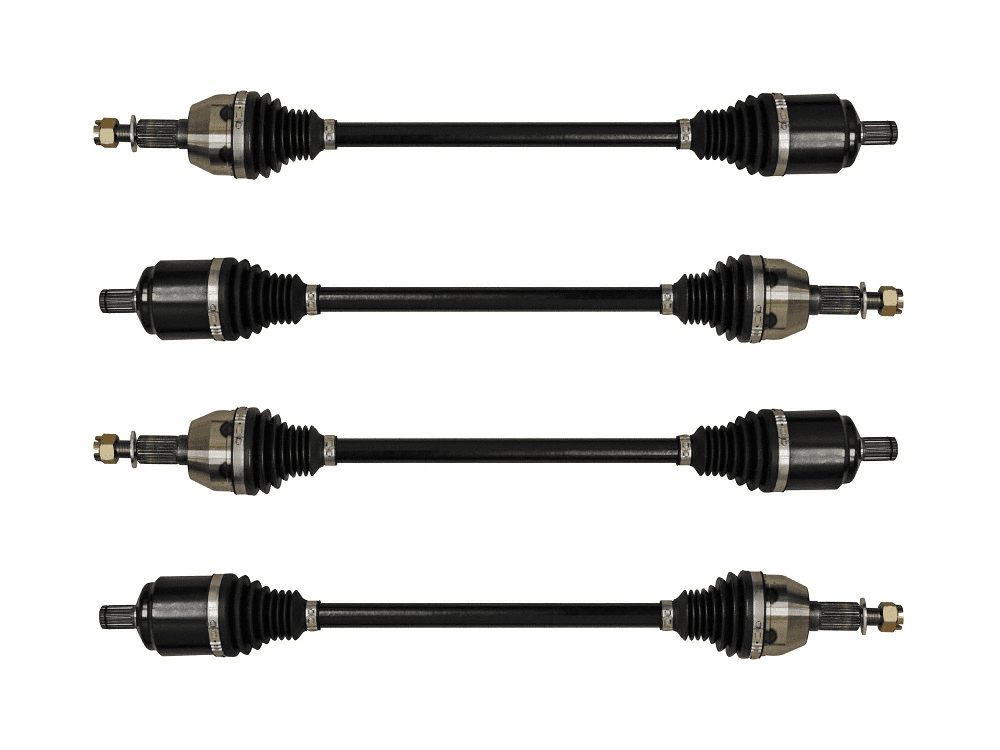

X300 Axle Features:
300M alloy steel shaft
CV components made of 300M and 4340 alloy steel
Maximized CV, spider, and cage size for superior strength
Shaft flexes to absorb impact
Reduces strain on CVs and drivetrain components
CVs packed with proprietary high-temp grease
Backed by a 3-Year Warranty - the industry's best axle warranty
Rhino 2.0 Features:
100% stronger than stock
Utilizes the Rhino 2.0 Formula
Size: Massive 4mm increase in size!
Materials
Heat Treatment
Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
Industry leading 18-month warranty
Field and lab tested for extreme strength and endurance
CAD drawn for expert precision
If you are curious about how to install this product, you can view the Install Instructions here.
.
