KFI | Yamaha Raptor | Wolverine 350 | Open Trail ATV Plow System
Item# kfi-snowatvyamaha-rpt-wol
Description
Put your Yamaha Raptor | Wolverine 350 to work in the winter with the Open Trail Snow Plow Kit from KFI. KFI Snow Plow Kits are made in the USA engineered to withstand the varying harsh conditions of winter. Plow Kit come complete with: (1) Plow Blade (your choice of size)
(1) ATV Push Tube
(1) Vehicle Specific Mount (make sure to select your correct vehicle above)
- Does not included winch or winch mount
- 48", 54", 60" blades do not include 2-ply top rubber flap, must be purchased separately
All Plow Components Feature:
- Complete installation instructions included
- All mounting hardware included
- KFI satisfaction guaranteed
- 2-Year KFI Warranty
- Powdercoated for maximum durability
- Components are metal bead blasted before they are powder coated for the best possible finish prep.
- 100% Made in the USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Measures 16" Tall and 48", 54" or 60" Wide
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Rolls snow off to the side, great for continuous plowing of long driveways and paths
- 100% MADE IN USA
- Lightweight Blade fully assembled at 25lbs.
- 50” width Flexible Black Poly Vacuum formed face
- 3/16” and 10 gauge Grade 50 Steel Rib and Frame construction
- Shot Blasted and Powder Coated Black
- 2-Sided 3/16” Grade 50 Steel wear bar
- 17” Vertical blade face height
- 1/4” thick Adjustable Skids
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 1-Year KFI Warranty
- Mid-Mount Design with 40-50% more lift height than our competitors Mid-Mount System
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 5 blade angle positions that rotate the blade up to 25 Degrees
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty
- 100% MADE IN USA

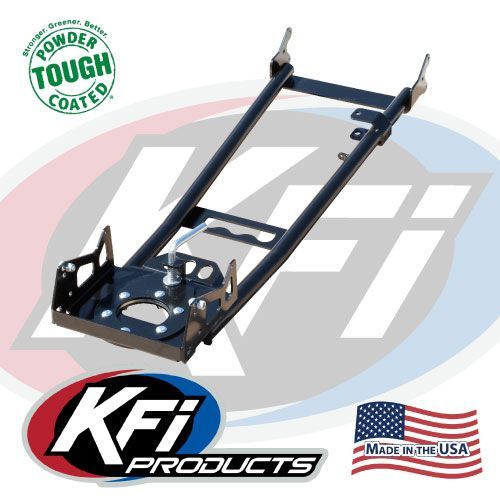

- Mid-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
