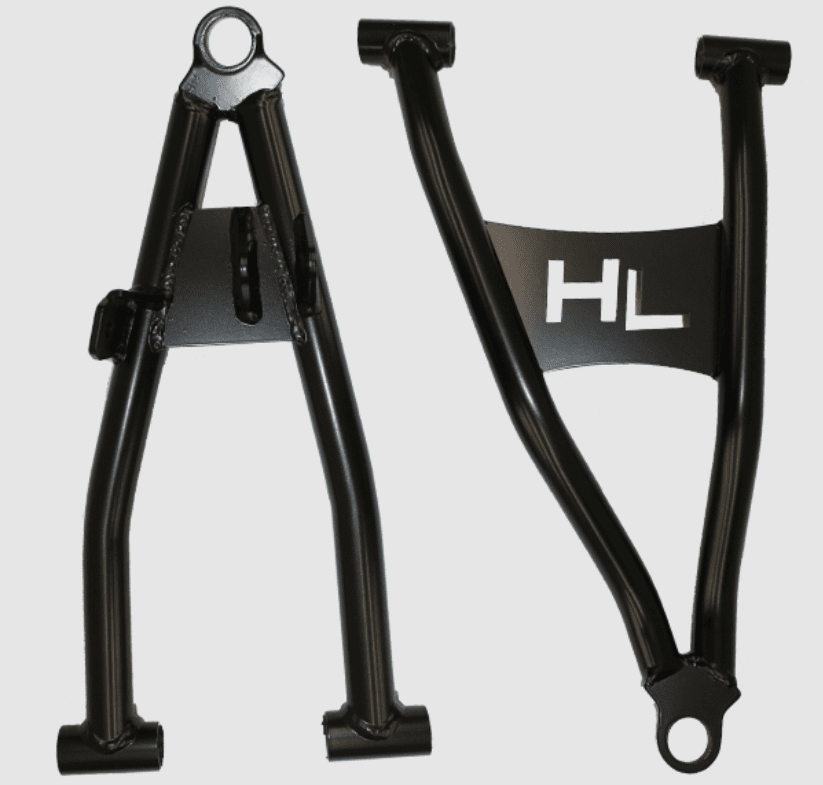

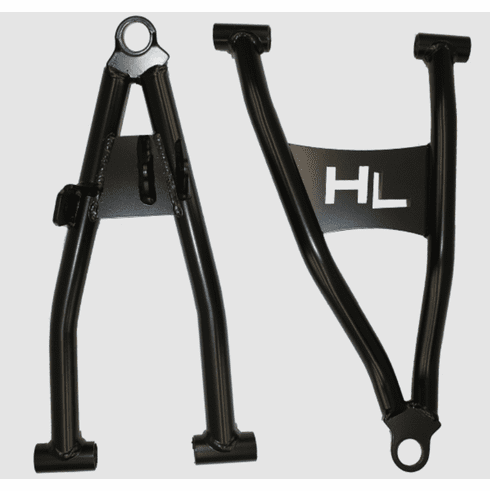

High Lifter 2018-20 Polaris Ranger XP 1000 Front Forward Upper And Lower Control Arms (Black)Zoom

High Lifter 2018-20 Polaris Ranger XP 1000 Front Forward Upper And Lower Control Arms (Black)

Item# HIL-MCFFA-RNG1-B1
$499.95$549.95You Save - $50.00 (9%)
Color:
Add Pre-Installed Ball Joints:
Qty:

Description



Fits:
2020 Polaris Ranger 1000
2020 Polaris Ranger 1000 EPS
2020 Polaris Ranger 1000 EPS Winter Prep
2020 Polaris Ranger Crew 1000
2020 Polaris Ranger Crew 1000 EPS
2020 Polaris Ranger Crew 1000 EPS Winter Prep
2020 Polaris Ranger Crew XP 1000 High Lifter Edition
2020 Polaris Ranger Crew XP 1000 Northstar
2020 Polaris Ranger Crew XP 1000 NorthStar Premium
2020 Polaris Ranger Crew XP 1000 Northstar Ride Com
2020 Polaris Ranger Crew XP 1000 NorthStar Ultimate
2020 Polaris Ranger Crew XP 1000 Premium
2020 Polaris Ranger Crew XP 1000 Premium Ride Command
2020 Polaris Ranger Crew XP 1000 Texas Edition
2020 Polaris Ranger Crew XP 1000 Winter Prep
2020 Polaris Ranger XP 1000 EPS Texas Edition
2020 Polaris Ranger XP 1000 High Lifter Edition
2020 Polaris Ranger XP 1000 Northstar Edition
2020 Polaris Ranger XP 1000 Northstar Premium
2020 Polaris Ranger XP 1000 NorthStar Ride Command
2020 Polaris Ranger XP 1000 NorthStar Ultimate
2020 Polaris Ranger XP 1000 Premium
2020 Polaris Ranger XP 1000 Premium Ride Command
2020 Polaris Ranger XP 1000 Winter Prep
2019 Polaris Ranger Crew XP 1000 Back Country Edition
2019 Polaris Ranger Crew XP 1000 EPS
2019 Polaris Ranger Crew XP 1000 EPS High Lifter
2019 Polaris Ranger Crew XP 1000 EPS Northstar
2019 Polaris Ranger Crew XP 1000 Premium
2019 Polaris Ranger XP 1000 EPS Back Country Edition
2019 Polaris Ranger XP 1000 EPS High Lifter Edition
2019 Polaris Ranger XP 1000 EPS Northstar Edition
2019 Polaris Ranger XP 1000 EPS Ride Command Edition
2019 Polaris Ranger XP 1000 Premium
2018 Polaris Ranger XP 1000 EPS
2018 Polaris Ranger XP 1000 EPS Northstar Edition

High Lifter's service team uses a hydraulic press to properly install ball joints, ensuring correct pressure, alignment, and secure clips.

Purchasing control arms with pre-installed ball joints avoids damage from improper installation, which isn't covered by the Lifetime Warranty. The ball joints in this kit are BJP-3 and BJP-5.

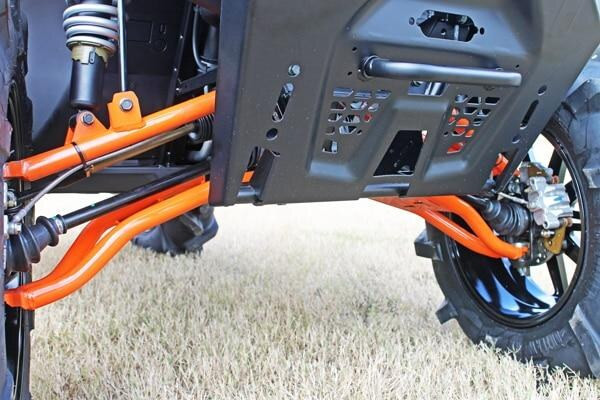

The control arms are designed to maximize ground clearance with a strategic arch that follows the axle’s angle for better protection and visual appeal, without risking axle damage from excessive arch.

They are precision-manufactured to fit like factory arms, and most kits feature the High Lifter logo cut into the bracing.

Installation is straightforward with detailed instructions, and stock bushings and ball joints can be reused. High Lifter also offers arms with pre-installed ball joints.

It’s recommended to check bearings, bushings, ball joints, and brake wear before installation to ensure a smooth process.

Features:
  • 25% larger than average stock arms - Crafted from 1 1/4" DOM steel
  • Up to 2.5x the wall thickness of an average stock arms - .188" wall thickness
  • Grease fittings included for most models
  • Added ground clearance featuring bends that maximize clearance and axle protection
  • Most stock powder coat colors available in stock
  • Easy to install and maintain
  • Limited Lifetime Warranty

    NOTES:
  • If a customer is running or plans on running Front Outlaw DHT Axles and this forward a-arm kit, they will need to add the Polaris Steering Stop Kit (Part# RANGER-SSK) to avoid clearance issues on the CV boot.
  • Be sure to check for worn ball joints, bearings, and bushings before installation and replace them if needed. If ball joints are needed, see part number BJP-3 and BJP-5; for bearings, see part number WBK-25-1628; for lower control arm bushings, see part number BK-50-1076.
  • If a customer is running or will purchase the forward control arms and wants to run it with BUMPER-RNG9 (or any similar bumper), the bumper will have to be modified/cut/trimmed to clear any tire 28" or taller.

    If you are curious about how to install this product, you can view the Install Instructions here.

    This item usually ships in 2-3 business days.
