Home > General Accessories > Brands > High Lifter > Polaris > High Lifter Polaris RZR XP 1000 4" Portal Gear Lift (30% Dual Idler) (2 And 4 Seater)

High Lifter Polaris RZR XP 1000 4" Portal Gear Lift (30% Dual Idler) (2 And 4 Seater)

Name: High Lifter Polaris RZR XP 1000 4 Portal Gear Lift (30% Dual Idler) (2 And 4 Seater)
Brand: High Lifter
Price: 3955 USD
Availability: InStock

Item# HIL-PGL-430DI-RZR1

Description

High Lifter Polaris RZR XP 1000 4" Portal Gear Lift (30% Dual Idler) (2 and 4 Seater) (73-14481)

This High Lifter 4' Portal Gear Lift is made tough and ready for any challenge. Now engineered with a gearing setup that allows two idler gears in the portal box to spread the load between twice as many teeth on the gears. This doubles the area and reduces the stress by half, allowing more abuse. This kit is for riders who are looking for torque and power.

High Lifter Portal Gear Lift (Each kit includes 4 portal boxes)

15% & 30% Dual Idler Reductions

What does the Dual Idler Gear Lift offer?

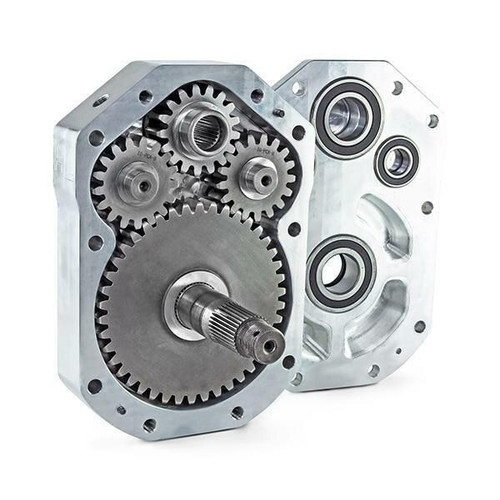

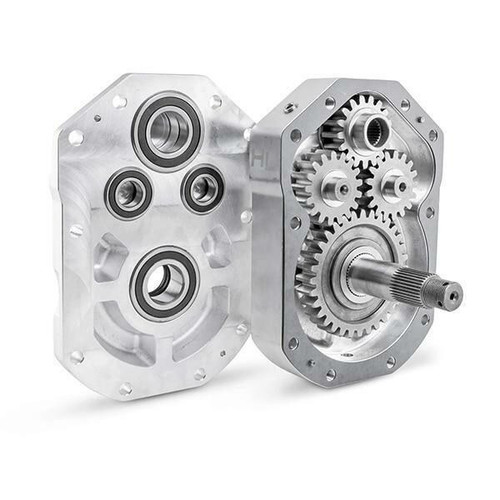

High Lifter improved the portal design by adding a second idler gear in the gear box
The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
You gain more reliable torque transfer
Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears"¦
Gear reduction extends brake life by needing brakes less often due to greatly improved engine braking
Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!

Why is this 4"ť kit better than our competitor?

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant

Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate

These are the strongest backing plates on the market
5/16"ť steel plate with Bent flanges for strength and durability Okay
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications

Rotors

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

Tire Fitment:

Largest Tire with Portal: 33"
Largest Tire with Forward Arms: 35"
Our stated tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications.
Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

Wheel Requirements:

14" or larger
14" factory wheels must run 1" spacer
14" & 15" can not exceed 4-1/2" backspacing
16" & larger can not exceed 5" backspacing

Fitment

2016 Polaris RZR 1000 XP EPS
2016 Polaris RZR 1000 XP High Lifter Edition
2016 Polaris RZR 1000 XP 4 EPS
2016 Polaris RZR 1000 XP 4 High Lifter Edition
2022 Polaris RZR 1000 XP Sport
2022 Polaris RZR 1000 XP Premium
2022 Polaris RZR 1000 XP Trails and Rocks
2022 Polaris RZR 1000 XP High Lifter Edition
2022 Polaris RZR 1000 XP 4 Sport
2022 Polaris RZR 1000 XP 4 Premium
2022 Polaris RZR 1000 XP 4 High Lifter Edition
2015 Polaris RZR 1000 XP EPS
2015 Polaris RZR 1000 XP High Lifter Edition
2015 Polaris RZR 1000 XP Desert
2015 Polaris RZR 1000 XP 4 EPS
2015 Polaris RZR 1000 XP FOX Edition
2017 Polaris RZR 1000 XP 4 High Lifter Edition
2017 Polaris RZR 1000 XP 4 EPS
2017 Polaris RZR 1000 XP EPS
2017 Polaris RZR 1000 XP High Lifter Edition
2017 Polaris RZR 1000 XP SE EPS
2018 Polaris RZR 1000 XP EPS
2018 Polaris RZR 1000 XP High Lifter Edition
2018 Polaris RZR 1000 XP Ride Command
2018 Polaris RZR 1000 XP Trail and Rocks
2018 Polaris RZR 1000 XP 4 EPS
2018 Polaris RZR 1000 XP 4 High Lifter Edition
2018 Polaris RZR 1000 XP 4 Ride Command
2019 Polaris RZR 1000 XP EPS
2019 Polaris RZR 1000 XP High Lifter Edition
2019 Polaris RZR 1000 XP Ride Command
2019 Polaris RZR 1000 XP Trail & Rock
2019 Polaris RZR 1000 XP DYNAMIX
2019 Polaris RZR 1000 XP 4 EPS
2019 Polaris RZR 1000 XP 4 High Lifter Edition
2019 Polaris RZR 1000 XP 4 Ride Command
2019 Polaris RZR 1000 XP 4 DYNAMIX
2020 Polaris RZR 1000 XP
2020 Polaris RZR 1000 XP Premium
2020 Polaris RZR 1000 XP Limited Edition
2020 Polaris RZR 1000 XP High Lifter Edition
2020 Polaris RZR 1000 XP 4 High Lifter Edition
2020 Polaris RZR 1000 XP Trail & Rock
2020 Polaris RZR 1000 XP 4
2020 Polaris RZR 1000 XP 4 Premium
2020 Polaris RZR 1000 XP 4 Limited Edition
2021 Polaris RZR 1000 XP Sport
2021 Polaris RZR 1000 XP Premium
2021 Polaris RZR 1000 XP Trails & Rocks
2021 Polaris RZR 1000 XP High Lifter Edition
2021 Polaris RZR 1000 XP 4 Sport
2021 Polaris RZR 1000 XP 4 Premium
2021 Polaris RZR 1000 XP 4 High Lifter Edition
