High Lifter Polaris RZR 1000 Portal Gear Lift (6") (45% Dual Idler)
Item# HIL-PGL-645DI-RZR1
Description
Description
Want lift plus power and performance? This High Lifter Polaris RZR 1000 Portal Gear Lift (6") (45% Dual Idler) (PGL-645DI-RZR1) was engineered with a gearing setup for a 6" portal with 45% gear reduction. You can run a larger tire size between a 33" and 39" and have the torque and horsepower you need. This robust set of portals gives height and power in any terrain. For the mud rider, you're geared to get out of the thickest mud holes with 6" of height to pass over anything that comes in your way. For the rock climber, a 45% gear reduction gives you the power to ease right over rocks and boulders, plus added lift to run big tires and go places your friends can't.
Features

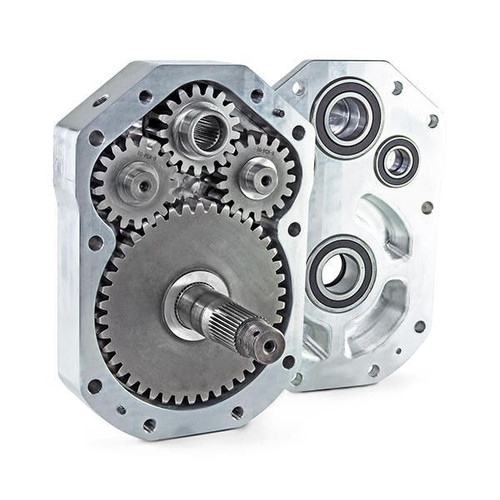

- High Lifter improved the portal design by adding a second idler gear in the gear box
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
- You gain more reliable torque transfer
- If you run a 40" tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
- Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears"
- 45% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
- Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!
Overview
Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16" steel plate with Bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
13" Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
Fitment
- 2016 Polaris RZR 1000 XP EPS
- 2016 Polaris RZR 1000 XP High Lifter Edition
- 2016 Polaris RZR 1000 XP 4 EPS
- 2016 Polaris RZR 1000 XP 4 High Lifter Edition
- 2015 Polaris RZR 1000 XP EPS
- 2015 Polaris RZR 1000 XP High Lifter Edition
- 2015 Polaris RZR 1000 XP Desert
- 2015 Polaris RZR 1000 XP 4 EPS
- 2015 Polaris RZR 1000 XP FOX Edition
- 2017 Polaris RZR 1000 XP 4 High Lifter Edition
- 2017 Polaris RZR 1000 XP 4 EPS
- 2017 Polaris RZR 1000 XP EPS
- 2017 Polaris RZR 1000 XP High Lifter Edition
- 2017 Polaris RZR 1000 XP SE EPS
- 2018 Polaris RZR 1000 XP EPS
- 2018 Polaris RZR 1000 XP High Lifter Edition
- 2018 Polaris RZR 1000 XP Ride Command
- 2018 Polaris RZR 1000 XP Trail & Rocks
- 2018 Polaris RZR 1000 XP 4 EPS
- 2018 Polaris RZR 1000 XP 4 High Lifter Edition
- 2018 Polaris RZR 1000 XP 4 Ride Command
- 2019 Polaris RZR 1000 XP EPS
- 2019 Polaris RZR 1000 XP High Lifter Edition
- 2019 Polaris RZR 1000 XP Ride Command
- 2019 Polaris RZR 1000 XP Trail & Rock
- 2019 Polaris RZR 1000 XP DYNAMIX
- 2019 Polaris RZR 1000 XP 4 EPS
- 2019 Polaris RZR 1000 XP 4 High Lifter Edition
- 2019 Polaris RZR 1000 XP 4 Ride Command
- 2019 Polaris RZR 1000 XP 4 DYNAMIX
- 2020 Polaris RZR 1000 XP Premium
- 2020 Polaris RZR 1000 XP Limited Edition
- 2020 Polaris RZR 1000 XP High Lifter Edition
- 2020 Polaris RZR 1000 XP 4 High Lifter Edition
- 2020 Polaris RZR 1000 XP Trail & Rock
- 2020 Polaris RZR 1000 XP 4
- 2020 Polaris RZR 1000 XP 4 Premium
- 2020 Polaris RZR 1000 XP 4 Limited Edition
