Super ATV | 2016+ Polaris General (NON XP) | 6" Portal Gear Lift
Item# SUP-PGH6-1-44-302AG
Description
Fits:
Polaris General 1000 : 2016+
Polaris General 4 1000 : 2017+
Wheel Requirements:
-18 or larger wheel required
-18 wheels cannot exceed 4-1/2 backspacing
-20 and larger wheels cannot exceed 5 backspacing
-Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1 wheel spacer
Super ATVs GDP 6 Portal Gear Lift for the Polaris General 1000 provides the clearance and torque needed to run larger tires and conquer challenging terrain.

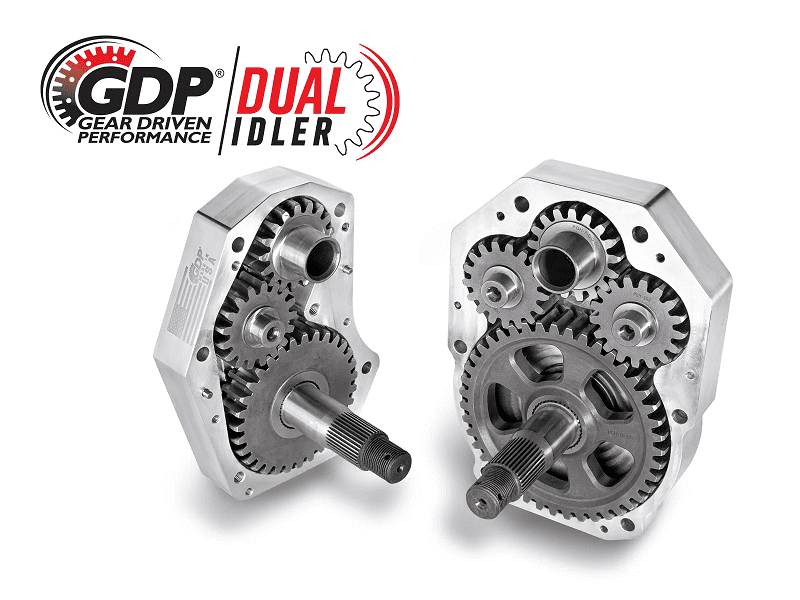

With gear reduction options of 30%, 45%, or 60%, and dual idler gear setups, riders can customize their performance to match their style, whether for speed, rough terrain, or mudding. The dual idler system uses precisely engineered 9310 steel gears, ensuring maximum durability and reliable torque transfer.
Portals are designed to reduce drivetrain stress by housing the gear reduction in the hub, extending the life of critical components like axles and transmissions.
Built with reinforced cast or billet aluminum housings and advanced steel backing plates, GDP Portals offer unmatched strength. The system includes advanced gaskets, seals, and bearings for superior oil resistance, complete sealing, and durability.
6 Portal Gear Lift Kit Includes:
-(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings and thrust bearings.
-(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
-(4) Specialized steel alloy backing plates
-(4) Steel caliper mounting plates
-(2) Steel steering arms
-Extended brake lines
-All required hardware, including recessed castle nut socket
Polaris General Portal Gear Reduction Recommendations:
Tire Size: Required Suspension Setup with 6" Portals
Up to 30": Stock
30": 3" Lift Kit
32": 1.5" Forward Front A-Arms
32": 1.5" Forward Front A-Arms and 3" Lift Kit
44": 7-10" Lift Kit
Features:
Polaris General 1000 : 2016+
Polaris General 4 1000 : 2017+
Wheel Requirements:
-18 or larger wheel required
-18 wheels cannot exceed 4-1/2 backspacing
-20 and larger wheels cannot exceed 5 backspacing
-Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1 wheel spacer
Super ATVs GDP 6 Portal Gear Lift for the Polaris General 1000 provides the clearance and torque needed to run larger tires and conquer challenging terrain.
With gear reduction options of 30%, 45%, or 60%, and dual idler gear setups, riders can customize their performance to match their style, whether for speed, rough terrain, or mudding. The dual idler system uses precisely engineered 9310 steel gears, ensuring maximum durability and reliable torque transfer.
Portals are designed to reduce drivetrain stress by housing the gear reduction in the hub, extending the life of critical components like axles and transmissions.
Built with reinforced cast or billet aluminum housings and advanced steel backing plates, GDP Portals offer unmatched strength. The system includes advanced gaskets, seals, and bearings for superior oil resistance, complete sealing, and durability.
6 Portal Gear Lift Kit Includes:
-(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings and thrust bearings.
-(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
-(4) Specialized steel alloy backing plates
-(4) Steel caliper mounting plates
-(2) Steel steering arms
-Extended brake lines
-All required hardware, including recessed castle nut socket
Polaris General Portal Gear Reduction Recommendations:
Tire Size: Required Suspension Setup with 6" Portals
Up to 30": Stock
30": 3" Lift Kit
32": 1.5" Forward Front A-Arms
32": 1.5" Forward Front A-Arms and 3" Lift Kit
44": 7-10" Lift Kit
Features:
- Available with billet or cast aluminum housing
- 9310 alloy billet steel precision ground gears are cool and quiet
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brakes lines and instructions
If you are curious about how to install this product, you can view the Install Instructions here.
If you are curious about how to install this product, you can view the Install Instructions here.
If you are curious about how to install this product, you can view the Install Instructions here.
If you are curious about how to install this product, you can view the Install Instructions here.
This item usually ships in 2-3 business days.
