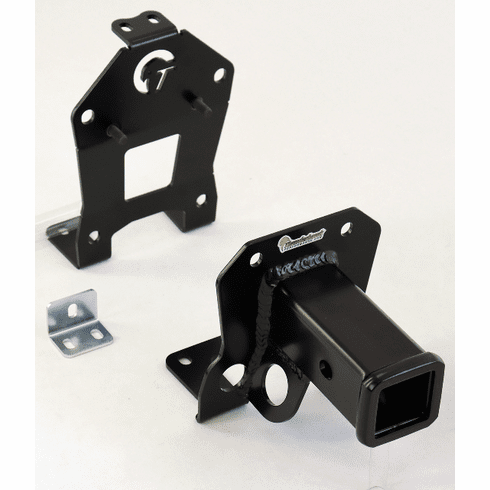

Thunderhawk | Polaris RZR XP 1000 | Standard Rear Receiver Hitch
Item# THU-PZ2822
Description
Fits:
2014 - 2023 Polaris RZR XP 1000
2014 - 2023 Polaris RZR XP 1000 4
2014 - 2023 Polaris RZR XP Turbo
2014 - 2023 Polaris RZR XP Turbo 4
Thunderhawk Performance offers a patent-pending rear receiver hitch system designed to accommodate Polaris rear bumpers, a popular option for RZR XP 1000 and XP Turbo models. Recognizing the common issue with one-piece hitches interfering with routine maintenance, Thunderhawk's two-piece hitch eliminates the need for suspension disassembly, providing easier access to the transmission and rear differential fluid fill/level plug.
The key to this system lies in Thunderhawk's double-shear radius rod support plate, replacing the original stiffener plate and reinforcing the frame by creating a second frame mount for the rear of the radius rods. This design prevents frame flex, deformation, and cracking around the radius rod mounting holes, doubling the strength of the radius rod mounting bolts.
Fitment of Thunderhawk Double-Shear Hitches depends on the width of the radius rods. The hitches are available for both standard straight radius rods (1 3/8" wide) and High-Clearance radius rods (1 3/4" wide). For aftermarket radius rods, customers need to provide the measurement of their rods to ensure the correct fit.
The system is compatible with Polaris rear bumpers and some aftermarket bumpers with a similar design. For frame-mount bumpers, the fitment is determined by the presence of a cross-tube down low, ensuring compatibility with the hitch.
Thunderhawk hitches have a durable black powder coat finish and are constructed with reinforced receiver tubes for strength, durability, and proper fitment with towing accessories. Additional features include double gussets to eliminate deflection of the receiver tube during towing, accessibility to the factory tow point, and a tongue weight rating of 150 lbs. Installation takes approximately 60-90 minutes. It is important to note that this hitch does not fit the RZR XP Turbo S (72" wide model) or RS-1 (single-seat). Thunderhawk Performance receiver hitches accept standard 2" automotive receiver hitch components, commonly used on most pick-up trucks, making them easily accessible at large discount stores or auto parts chains. The product is proudly made in the USA.
Features:
2014 - 2023 Polaris RZR XP 1000
2014 - 2023 Polaris RZR XP 1000 4
2014 - 2023 Polaris RZR XP Turbo
2014 - 2023 Polaris RZR XP Turbo 4
Thunderhawk Performance offers a patent-pending rear receiver hitch system designed to accommodate Polaris rear bumpers, a popular option for RZR XP 1000 and XP Turbo models. Recognizing the common issue with one-piece hitches interfering with routine maintenance, Thunderhawk's two-piece hitch eliminates the need for suspension disassembly, providing easier access to the transmission and rear differential fluid fill/level plug.
The key to this system lies in Thunderhawk's double-shear radius rod support plate, replacing the original stiffener plate and reinforcing the frame by creating a second frame mount for the rear of the radius rods. This design prevents frame flex, deformation, and cracking around the radius rod mounting holes, doubling the strength of the radius rod mounting bolts.
Fitment of Thunderhawk Double-Shear Hitches depends on the width of the radius rods. The hitches are available for both standard straight radius rods (1 3/8" wide) and High-Clearance radius rods (1 3/4" wide). For aftermarket radius rods, customers need to provide the measurement of their rods to ensure the correct fit.
The system is compatible with Polaris rear bumpers and some aftermarket bumpers with a similar design. For frame-mount bumpers, the fitment is determined by the presence of a cross-tube down low, ensuring compatibility with the hitch.
Thunderhawk hitches have a durable black powder coat finish and are constructed with reinforced receiver tubes for strength, durability, and proper fitment with towing accessories. Additional features include double gussets to eliminate deflection of the receiver tube during towing, accessibility to the factory tow point, and a tongue weight rating of 150 lbs. Installation takes approximately 60-90 minutes. It is important to note that this hitch does not fit the RZR XP Turbo S (72" wide model) or RS-1 (single-seat). Thunderhawk Performance receiver hitches accept standard 2" automotive receiver hitch components, commonly used on most pick-up trucks, making them easily accessible at large discount stores or auto parts chains. The product is proudly made in the USA.
Features:
- Multi-piece hitch design allows for trans/differential fluid service (patent-pending)
- Strongest design available - based on Thunderhawk double-shear mounting plate system
- Hitch is attached directly to the frame, not just the four radius rod bolts
- Upgrades frame to true double-shear radius rod mounting, increasing strength by 100%
- Eliminates "egging-out" of radius rod mounting holes in the RZR XP frame
- Stops frame damage caused by aftermarket high-clearance radius rods
- Reinforced 2" receiver tube and gussets eliminate flex and bending of hitch
- Removable hitch for transmission & differential fluid service
- Fits with stock, and most aftermarket radius rods (see notes below)
- * Fits with Polaris rear bumpers & aftermarket frame-mount bumpers with low cross tubes (see notes below)
- * Does NOT fit with aftermarket bumpers using four-bolt radius rod plate for lower mount (see notes below)
- Durable black powdercoat finish
- Complete kit installs easily in about 60-90 minutes
- 150 lb tongue weight rating
- Special hitches available to fit Desert Edition, High-Lifter, Gold Matte LE (Rock Crawler) or Trails & Rocks model RZR's
- Made in USA
If you are curious about this product, you can view a small clip here.
This item usually ships in 2-3 business days.
