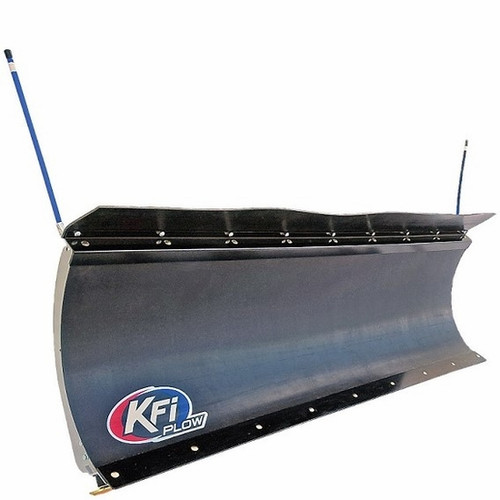

66" Plow System for CF Moto UForce 500
Item# DEN-SBSS-77-10599
Description
NOTES:
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.
Applicability: 2014-22 CFMOTO UForce 800 and 2016-20 CFMOTO UForce 500
No one in their right mind wakes up dying to shovel a long country driveway. Thanks to you being the proud owner of a CF Moto, you surely don't have too. You just need the right aftermarket accessory to get you geared up for the winter. Like with this UForce 500 75-Standard Series Snow Plow System.
The 19-inch scoop is constructed from 11-gauge steel and four seven-gauge ribs that run the length of the application. Integrated horizontal stabilizers provide rock-solid support to the deepest point of the blade. Between that and the center mounting system, the UTV plow disperses the force of impact to the most robust portion of the blade. If you're digging yourself out with a UForce 800 snow plow, can it really be called work?
Blade Specifications:
Optional Extended Length Push Tube:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.
Optional Plow Markers:
Snow getting high or need to plow close to vehicles or other items? Get the snow plow markers so you can see exactly where the edge of your blade is, letting you have the most control.
Optional Plow Pulley Fairlead Kit:
The Snow Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.
Optional Box Ends:
If you want to keep the snow from rolling our the sides of your Denali snow plow, get the box ends right here. These are 1/4" thick steel and include height and andle adjustable skid foot brackets. All the necessary installation instructions and hardware are included also.
Optional Additional Wearbar:
If you want to keep the edges of your snow plow in top shape the Denali Polyurethane Wearbar is the choice for you. Not only is the wearbar reversible for longer use, but the polyurethane construction outlasts rubber and steel. The wearbar won't cause damage to brick, concrete, curbs and more! The wearbar is the perfect choice to increase productivity and reduce equipment wear.
Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.
Applicability: 2014-22 CFMOTO UForce 800 and 2016-20 CFMOTO UForce 500
No one in their right mind wakes up dying to shovel a long country driveway. Thanks to you being the proud owner of a CF Moto, you surely don't have too. You just need the right aftermarket accessory to get you geared up for the winter. Like with this UForce 500 75-Standard Series Snow Plow System.
The 19-inch scoop is constructed from 11-gauge steel and four seven-gauge ribs that run the length of the application. Integrated horizontal stabilizers provide rock-solid support to the deepest point of the blade. Between that and the center mounting system, the UTV plow disperses the force of impact to the most robust portion of the blade. If you're digging yourself out with a UForce 800 snow plow, can it really be called work?
Blade Specifications:
- 19" scoop
- 11 gauge steel leading horizontal supports
- Four 7 gauge ribs run the full length of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65 degree attack angle and over center design ensures snow rolls up and is thrown forward
- Replaceable 7 gauge, grade 50 steel wear bar
- Height and angle adjustable skid feet included
- Center mounted plow disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- 3 year warranty
- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees. 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground
- Stiff rubber flap
- Metal hold down bar
- Installation hardware
- Parker hydraulics system with built in relief valve overload protection
- Hydraulic system is completely sealed for life
- Full radius turn in just 5 seconds while driving
- Heavy duty chrome plated 3/4 inch cylinder shafts
- Two bolt installation of hydraulic cylinder and pump
- No modifications necessary
- Wire harness utilizes weatherproof connectors
- Backwards compatible with manual turning system
- Overload protection of 4,000 lbs. of extension force and 3,500 lbs. of retraction force
- Includes 3 year warranty
Optional Extended Length Push Tube:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.
Optional Plow Markers:
Snow getting high or need to plow close to vehicles or other items? Get the snow plow markers so you can see exactly where the edge of your blade is, letting you have the most control.
Optional Plow Pulley Fairlead Kit:
The Snow Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.
- Standard spool pattern: 3" x 4-7/8"
- Wide spool pattern: 3" x 6.67"
Optional Box Ends:
If you want to keep the snow from rolling our the sides of your Denali snow plow, get the box ends right here. These are 1/4" thick steel and include height and andle adjustable skid foot brackets. All the necessary installation instructions and hardware are included also.
Optional Additional Wearbar:
If you want to keep the edges of your snow plow in top shape the Denali Polyurethane Wearbar is the choice for you. Not only is the wearbar reversible for longer use, but the polyurethane construction outlasts rubber and steel. The wearbar won't cause damage to brick, concrete, curbs and more! The wearbar is the perfect choice to increase productivity and reduce equipment wear.
Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
