CF Moto UForce 500 Snow Plow

NOTE: Must have a winch to use plow system.


Applicability: Fits

• 2014-21 CFMOTO UForce 800
• 2016-20 CFMOTO UForce 500
• 2019-21 CFMOTO UForce 1000

If you're searching for a snow plow to diminish that back-breaking shovel work when those frosty flakes cake your drive, then your search can stop here. The Open Trail Straight Steel Blade Snow Plow by KFI is a great addition for those bitter cold months in your CF Moto UForce 800. It's a quality choice to help tackle that tough-to-move snow, so we highly recommend you prepare yourself this winter with this plow system. Let's check out the features!

This system comes with all of the American-made essentials to clear your driveway in a matter of minutes, and even features some additional options to cover all the bases! The included 11 guage steel plow blade measures 16" tall and uses fully adjustable blade skids, allowing snow to be pushed straight ahead or to the sides with the maneuvering angle abilities. You won't break a sweat with the simple attachment system that uses the provided plow mount and push tube. Snow removal has never been easier! Order your aftermarket plow system today and let your CF Moto do the heavy lifting this winter season!

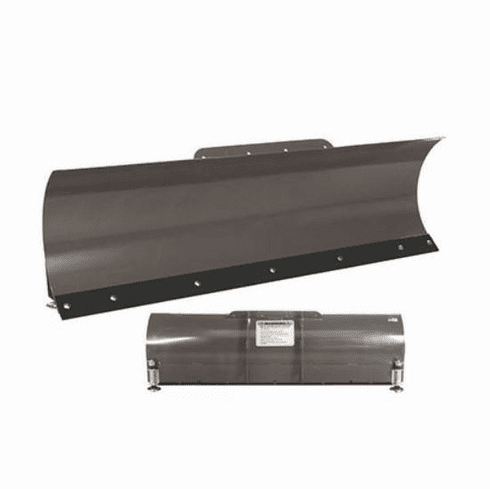

Straight Plow Blade Specifications:

• 100% U.S.A. made

• Blade constructed of 11 gauge steel

• Measures 16" tall

• Snow can be pushed straight ahead or to the sides up to 25 degrees

• Gusseting added for the wider width and heavier UTV

• Fully adjustable blade skids with bolt-on brackets

• Heavy duty 3" diameter, grade-50 steel skid plates

• 3/16" grade 50 ribbing for strong bolt up to push tube with swivel mount

• Metal bead blasted before they are powder coated

• Powder coated metallic silver

• 2 sided 3/16" x 3.00" grade 50 steel wear bar

• Wear bar attached with heavy duty grade 8 bolts

• Complete instructions and mounting hardware included
• 2 year KFI warranty

Push Tube Specifications:

• 100% U.S.A. made

• Front mount design with 30"+ of lift height

• Heavy duty 1-1/2" 11 gauge steel tubing

• Heavy duty 1-1/4" thick 1-1-/2" diameter grade 50 pivot bushings

• 6" diameter zinc plated rotator bushing

• Easy pull pin blade angle adjustment

• Multi-position plow lift bracket

• 6 five degree blade pitch adjustments

• 3 blade angle positions that rotate the blade up to 25 degrees

• Fully adjustable blade skids with bolt-on brackets

• Metal bead blasted before they are powder coated

• Powder coated black

• Complete installation instructions and hardware included

• 2 year KFI warranty

Plow Mount Specifications:

• Front mount
• 100% U.S.A. made

• Front mount system

• Plate constructed from 3/16" grade 50 steel

• All pin tabs are constructed from 1/4" thick grade 50 steel

• All plow tabs are tapered to help reduce hang ups while trail riding

• Bead blasted before they are powder coated

• Powder coated black

• Complete installation instructions and mounting hardware included

• 2 year KFI warranty

Optional Push Tube Extension Features:

• Constructed of heavy duty 3/16” grade 50 steel
• Shot blasted before powder coating
• Powder coated black
• All hardware included
• Positions the blade further out from of your machine, giving you room to run tracks on your side by side while plowing, keeping your tracks from interfering with the snow plow operation.

Optional Blade End Shield Features:

• Attaches to the ends of the plow to help reduce snow and dirt overflow
• Universal left hand or right hand
• 3/16” grade 50 steel powder coated black
• Adds 2-1/4” width to size of blade per shield
• Some drilling required

Optional Plow Markers Features:

• Increases your blade end visibility for added safety
• Bolts to the sides/ends of your blade
• Steel 89 degree angled base
• Includes two markers

Optional Plow Strap Features:

• For use with standard or wide winches
• Recommended to be used with roller fairlead
• Replaces a steel/synthetic winch line during plow season
• 64 inches of overall length
• Comes with 1" wide heavy duty strap and 3/16" synthetic attachment line
• Use your existing winch hook
• Multiple spool attachment options
• Maximizes winch pulling capacity
• 2,500 lb. break strength safety feature
• Protects winch from hits and impacts
• Eliminates damage to winch by avoiding cable stacking & binding
• Reduce wear on fairleads
• Designed for plowing
• Prolongs life of cable/synthetic rope

Optional Plow Lever Lift Features:

• Repositions lift attach point to help reduce winch and cable strain from lower mounted winches and bad cable angles
• Fully adjustable for multiple angles and attach points
• Designed to work with KFI UTV Push Tube #105635 ONLY
• Constructed of heavy duty 3/16” grade 50 steel
• Shot blasted before powder coating
• Powder coated tough black
• All hardware included
• Does NOT work with the plow actuator: #105935
