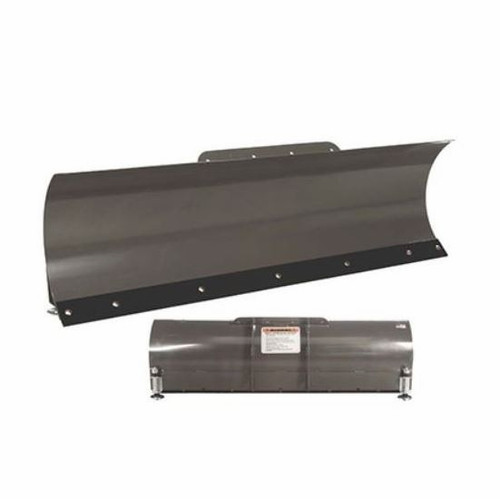

Snow Plow for CF Moto UForce 500
Item# KFI-SBSS-9008
Description
NOTE: Must have a winch to use plow system.
Applicability: Fits
You own a CF Moto, so there is no reason that you should be dreading the wintertime. Sure, you can't stop the snow from falling, but you can get a jump on it. How you ask? The answer is a UForce 500 Open Trail Straight Pro-Poly Blade Snow Plow System!
This bad boy is not like the rest, in fact, its revolutionizing construction is nearly bulletproof. The blade face consists of UHWM with a steel frame and is water, weather, impact, sound and corrosion-resistant. It also has a dual-curve design, which proves to divert snow away from the work surface with more efficiency. If that's not enough, an incorporated blade trip will move the component forward anytime it comes in contact with an immovable object. KFI made this one tough-as-all-get-out, and it's available to you at Side By Side Stuff.
Plow Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
Optional Push Tube Extension Features:
Optional Plow Strap Features:
Optional Plow Lever Lift Features:
Optional Plow Shield:
If you're trying to crack down on snow and dirt overflow, you've come to the right place. All our pro-poly blades come with the option to add a plow shield to your order. Offering three types to choose from, each shield option is manufactured from 3/16", grade 50 steel and powder coated black for the added durability you're always searching for. Pick your shield option today and get to removing that pesky snow from the comfort of your machine!
Applicability: Fits
- 2014-21 CFMOTO UForce 800
- 2016-20 CFMOTO UForce 500
- 2019-21 CFMOTO UForce 1000
You own a CF Moto, so there is no reason that you should be dreading the wintertime. Sure, you can't stop the snow from falling, but you can get a jump on it. How you ask? The answer is a UForce 500 Open Trail Straight Pro-Poly Blade Snow Plow System!
This bad boy is not like the rest, in fact, its revolutionizing construction is nearly bulletproof. The blade face consists of UHWM with a steel frame and is water, weather, impact, sound and corrosion-resistant. It also has a dual-curve design, which proves to divert snow away from the work surface with more efficiency. If that's not enough, an incorporated blade trip will move the component forward anytime it comes in contact with an immovable object. KFI made this one tough-as-all-get-out, and it's available to you at Side By Side Stuff.
Plow Blade Specifications:
- 3/16” grade 50 steel rib and frame construction
- Shot blasted and powder coated black steel frame
- Flexible heavy duty black poly (UHMW) face
- 2-Sided 3/16” grade 50 steel attached with grade 8 bolts
- Includes plow markers
- Replaceable blade face
- Includes snow flap
- Dual curvature face for supreme snow moving
- 21” vertical blade face height with an approximate 27” height with snow flap
- Heavy duty 1/2” thick adjustable skids
- Weighs just as much as the steel blades
Push Tube Specifications:
- 100% U.S.A. made
- Front mount design with 30"+ of lift height
- Heavy duty 1-1/2" 11 gauge steel tubing
- Heavy duty 1-1/4" thick 1-1-/2" diameter grade 50 pivot bushings
- 6" diameter zinc plated rotator bushing
- Easy pull pin blade angle adjustment
- Multi-position plow lift bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 degrees
- Fully adjustable blade skids with bolt-on brackets
- Metal bead blasted before they are powder coated
- Powder coated black
- Complete installation instructions and hardware included
- 2 year KFI warranty
Plow Mount Specifications:
- Front mount
- 100% U.S.A. made
- Plate constructed from 3/16" grade 50 steel
- All pin tabs are constructed from 1/4" thick grade 50 steel
- All plow tabs are tapered to help reduce hang ups while trail riding
- Bead blasted before they are powder coated
- Powder coated black
- Complete installation instructions and mounting hardware included
- 2 year KFI warranty
Optional Push Tube Extension Features:
- Constructed of heavy duty 3/16” grade 50 steel
- Shot blasted before powder coating
- Powder coated black
- All hardware included
- Positions the blade further out from of your machine, giving you room to run tracks on your side by side while plowing, keeping your tracks from interfering with the snow plow operation.
Optional Plow Strap Features:
- For use with standard or wide winches
- Recommended to be used with roller fairlead
- Replaces a steel/synthetic winch line during plow season
- 64 inches of overall length
- Comes with 1" wide heavy duty strap and 3/16" synthetic attachment line
- Use your existing winch hook
- Multiple spool attachment options
- Maximizes winch pulling capacity
- 2,500 lb. break strength safety feature
- Protects winch from hits and impacts
- Eliminates damage to winch by avoiding cable stacking & binding
- Reduce wear on fairleads
- Designed for plowing
- Prolongs life of cable/synthetic rope
Optional Plow Lever Lift Features:
- Repositions lift attach point to help reduce winch and cable strain from lower mounted winches and bad cable angles
- Fully adjustable for multiple angles and attach points
- Designed to work with KFI UTV Push Tube #105635 ONLY
- Constructed of heavy duty 3/16” grade 50 steel
- Shot blasted before powder coating
- Powder coated tough black
- All hardware included
- Does NOT work with the plow actuator: #105935
Optional Plow Shield:
If you're trying to crack down on snow and dirt overflow, you've come to the right place. All our pro-poly blades come with the option to add a plow shield to your order. Offering three types to choose from, each shield option is manufactured from 3/16", grade 50 steel and powder coated black for the added durability you're always searching for. Pick your shield option today and get to removing that pesky snow from the comfort of your machine!
