VIAIR Mobile Playground Constant Duty On Board Air System - 200 PSI / 2.54 CFM

VIAIR Mobile Playground Constant Duty On Board Air System - 200 PSI / 2.54 CFM

VIAIR’s Mobile Playground Constant Duty OBA is powered by a pair of 380C pewter compressors, operates from a 1.5 gallon tank at 200PSI and is capable of inflating tires up to 40”. VIAIR’s Toyhauler OBA’s are powerful systems capable of fast tire inflation and many other pneumatic tasks. Featuring dual compressors, extension hoses and different size tanks to meet spacing needs, these kits are a must for anyone hauling long trailers in need of serviceable air.

NOTE: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Dimensions: 9″L x 4″W x 6.75″H (Each Unit)

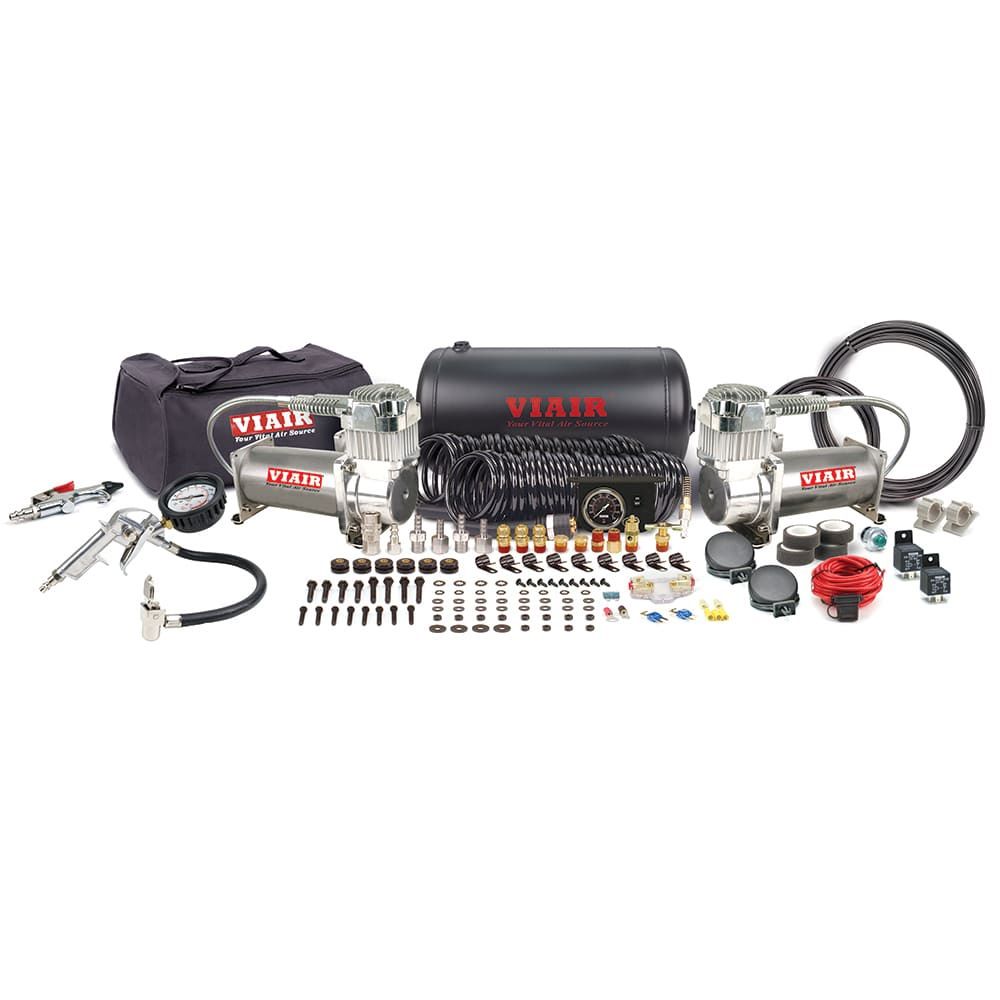

Features:


• (2) 380C 200 PSI VIAIR® Pewter Air Compressors w/Thermal Overload Protectors
• 1.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
• Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
• Pressure Switch (165 PSI on, 200 PSI off)
• (2) 40-Amp 4-Prong Relays
• Mini ANL Fuse Holder w/ 60-Amp Fuse
• Tire Inflation Gun w/ Mechanical 200 PSI Gauge
• (2) 30ft. Coil Hose with Quick Connect and Stud
• Rubber Tipped Blow Gun
• 250PSI Safety Valve
• (2) Air Filter Housing w/ Replacement Air Filter Elements
• 20ft. Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder
• VIAIR Storage Bag

This item usually ships in 1-2 business days.
