VIAIR Nomad Constant Duty On Board Air System - 200 PSI / 1.58 CFM

VIAIR Nomad Constant Duty On Board Air System - 200 PSI / 1.58 CFM - #50021

The Nomad Constant Duty OBA by VIAIR® operates at 200 PSI with a flow rate of 1.58 CFM from a 1.5 gallon tank and powered by a 380C Stealth Black compressor. Van Life OBA's are capable of quick tire inflation and other pneumatic tasks with all accessories necessary for installing a working system in your vehicle.
NOTE: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 is 10 ~ 11 ft. lbs. Recommended torque for 1/4 and 3/8 is 16 ~ 18 ft. lbs.
Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. 12V Amp Draw: 23-Amps
• Ingress Protection Rating: IP67

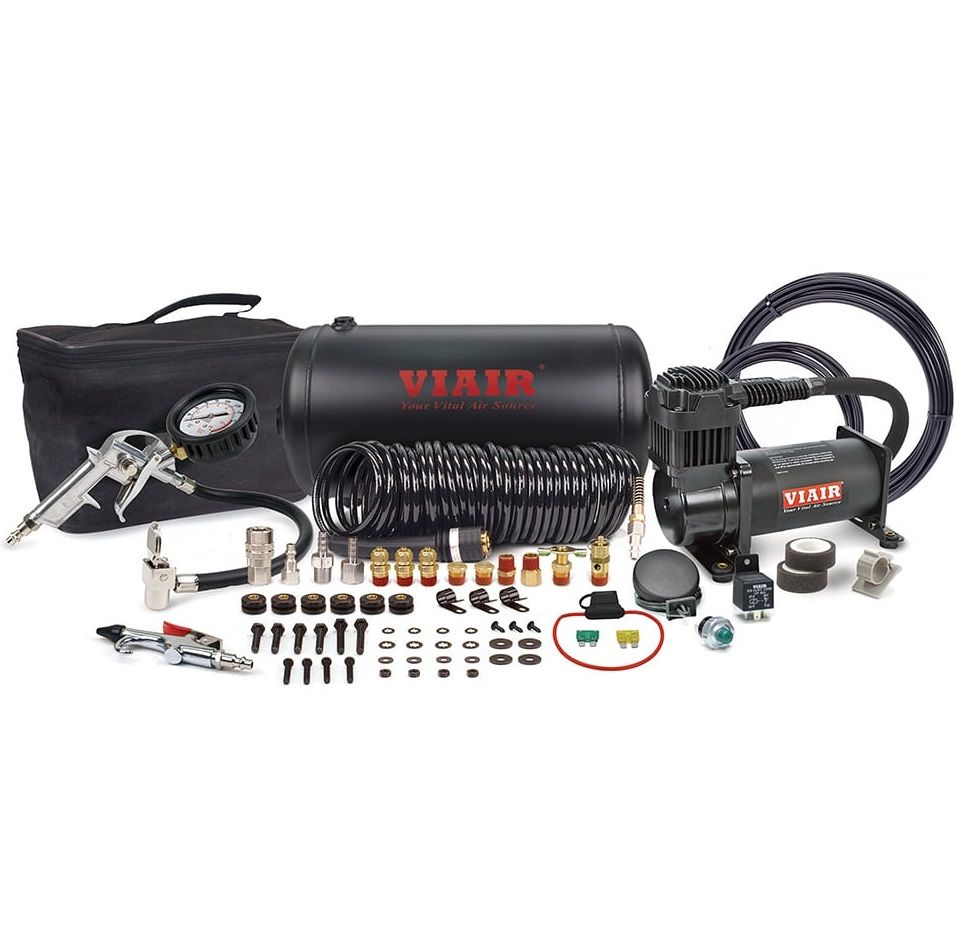

Features:

• 380C Stealth Black VIAIR® Compressor w/ Thermal Overload Protector
• 1.5 Gallon Matte Black VIAIR® Air Tank (200 PSI)
• Pressure Switch (165 PSI on, 200 PSI off)
• 40-Amp 4-Prong Relay
• Moisture Resistant Fuse Holder
• Mechanical Tire Inflation Gun w/ 160 PSI Gauge
• 30ft. Inside Braided Black Coil Hose w/ Quick Connect & stud
• Rubber-Tipped Blow Gun
• Air Source relocation Kit
• 1/4" (M) to 1/4" (M) NPT Reducer
• 1/4" (M) to 1/8" (F) NPT Reducer
• 5 Pc. Tank Port Fittings Kit (For 200 PSI Rated Systems)
• VIAIR® Storage Bag

Recommended Components (Sold Separately):

• Illuminated Dash Panel Gauge, 200PSI (P/N 20066)

This item usually ships in 1-2 business days.
